Article: F271
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | F271 |
| Product ID: | 7TAI029620R0087 |
| EAN: | 5414363151203 |
| Catalog Description: | NON-INS FLAG TERM, 4, 3, 1/4, METAL |

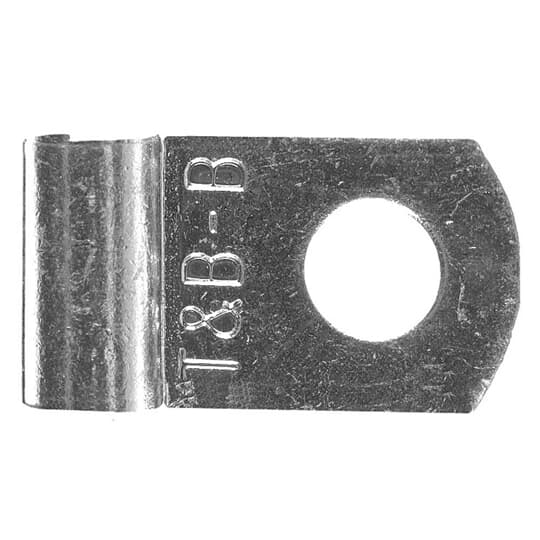

| Long Description: | Non-Insulated Flag Terminal, Length 1.10 Inches, Width .63 Inches, Bolt Hole 1/4 Inch, Wire Range #4 AWG, Copper, Tin Plated |
| |
| EAN: | 5414363151203 |
| UPC: | 786210812274 |
| |
| Product Net Length: | 0, mm |
| |
| Package Level 1 Units: | 200 piece |
| Package Level 1 Width: | 4.5 in |
| 114 mm | |
| Package Level 1 Height: | 3 in |
| 76 mm | |
| Package Level 1 Depth / Length: | 5 in |
| 127 mm | |
| Package Level 2 Units: | 1000 piece |
| Package Level 2 Width: | 24.3 in |
| 617 mm | |
| Package Level 2 Height: | 5.8 in |
| 147 mm | |
| Package Level 2 Depth / Length: | 4.19 in |
| 106 mm | |
| |
| Brand / Label: | Sta-Kon |
| Color: | Metallic |
| Effective Date: | 19750324 |
| Material: | Copper |
| Number of Batteries: | 0 |
| Product Name: | STA-KON AND CATAMOUNT TERMINAL |
| Product Type: | Non-Insulated Flag Terminal |
| Special Functions: | Flag terminals allow a 90 degree connection to the terminal block without bending the wire. |
| Standards: | UL E9809 |
| Wire Size: | 4-3 AWG |
| |
| Data Sheet, Technical Information: | F271 |
| Instructions and Manuals: | F271 |
| |
| ETIM 6: | EC001052 - Solderless copper terminals for copper conductors |
| ETIM 7: | EC001052 - Solderless copper terminals for copper conductors |
| UNSPSC: | 39121432 |
| WEEE Category: | Product Not in WEEE Scope |
| IDEA Granular Category Code (IGCC): | 4603 >> Electrical terminals |
