Article: KA3233
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | KA3233 |
| Product ID: | 2CPX033085R9999 |
| EAN: | 4011617330851 |
| Catalog Description: | KA3233 Meter panel |

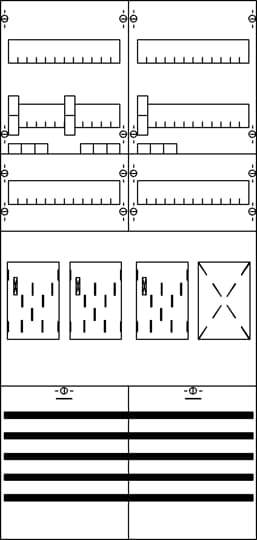

| Long Description: | Meter panel, suitable for series: ComfortLine A and ComfortLine AD, fully assembled module, with BKE-I, rated current 63 A, dimensions in mm (H x W x D): 1050 x 500 x 160, Metering module pre-wired, Earthing system TN-S, 5-pole, Stecktechnik, net side compartment, meter space: with busbar, pre-assembled for main switch SH, net side compartment, SG space: with busbar, system side compartment, meter space: with Main branch terminal, compartment for additional devices of eHZ 150 mm, Number of meter spaces single tariff 3, Number of reserve spaces 1, Grid unit 7 GU, Overall height 3, panel width 2, Space units 168, covers out of Plastic, 90 degree press and turn closure, RAL 7035 |
| |
| Product Name: | Meter panel |
| Rated Current (In): | 63 A |
| Number of Poles: | 5 |
| Number of Meter Cabinets: | 3 |
| Number of Meter Panels: | 3 |
| Number of Rows: | 0 |
| Number of TSG Panels: | 0 |
| Lower Connection Space: | with Bus Bar 5 - pole |
| Enclosure Type: | meter panel |
| Enclosure Type of Height: | 3 |
| Cover Style: | Closed |
| DIN Place Units: | 168 |
| Meter Boards: | 1 |
| Model Number: | eHZ |
| RAL Number: | RAL 7035 - Light Grey |
| Color: | light grey |
| |
| Degree of Protection: | IP2XC |
| SCIP: | 3d7ad6f9-0b99-413f-97f1-23ab0a31472c Germany (DE) |
| Simplified SCIP: | 3d7ad6f9-0b99-413f-97f1-23ab0a31472c Germany (DE) |
| |
| Width in Number of Modular Spacings: | 24 |
| Product Net Width: | 500 mm |
| Product Net Height: | 1050 mm |
| Product Net Depth / Length: | 160 mm |
| Product Net Weight: | 13.612 kg |
| |
| Package Level 1 Units: | pack 1 piece |
| Package Level 1 Width: | 505.000 mm |
| Package Level 1 Height: | 140.000 mm |
| Package Level 1 Depth / Length: | 1060.000 mm |
| Package Level 1 Gross Weight: | 14.156 kg |
| Package Level 1 EAN: | 4011617330851 |
| Package Level 2 Units: | pallet (lift) 10 piece |
| Package Level 2 Width: | 800.000 mm |
| Package Level 2 Height: | 1600.000 mm |
| Package Level 2 Depth / Length: | 1200.000 mm |
| Package Level 2 Gross Weight: | 156.12 kg |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85371098 |
| Replacement Product ID (NEW): | 2CPX054077R9999 |
| Country of Origin: | Germany (DE) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | No declaration needed |
| Instructions and Manuals: | 2CPC101298M5601 |
| 2CPC108515M5601 | |
| 2CPC131029M5601 | |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CPC000003B0101 |
| Instructions and Manuals: | 2CPC101298M5601 |
| 2CPC108515M5601 | |
| 2CPC131029M5601 | |
| |
| ETIM 6: | EC000263 - Meter panel |
| ETIM 7: | EC000263 - Meter panel |
| ETIM 8: | EC000263 - Meter panel |
| EPLAN Catalog Tree: | Mechanics / Housing accessories, internal extension / General |
| WEEE Category: | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 85371098 |
| Object Classification Code: | U |
