Article: DSRE3107NA000
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | DSRE3107NA000 |
| Product ID: | 7TAA057070R0249 |
| EAN: | 0708917276616 |
| Catalog Description: | 30A,ILK,2P3W,MG,107,125V,NA,XP |

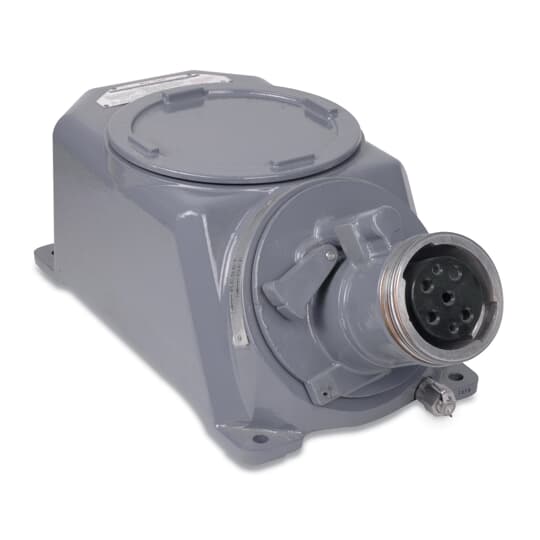

| Long Description: | MaxGard Explosion-Proof Interlocked Receptacle Class I, Class Ii, 30 Amp, 2 Pole 3 Wire, 125V, 60Hz |
| |
| EAN: | 0708917276616 |
| UPC: | 708917276616 |
| |
| Package Level 1 Units: | 1 piece |
| Package Level 1 Width: | 8.75 in |
| 222 mm | |
| Package Level 1 Height: | 8.5 in |
| 216 mm | |
| Package Level 1 Depth / Length: | 23 in |
| 584 mm | |
| |
| Application: | Power for trade show exhibits and concerts, Electrical hook-up of mobile medical imging (MMI trailers) |
| Brand / Label: | Russellstoll |
| Current Rating: | 30 A |
| Effective Date: | 20000316 |
| Material: | Cast Aluminum |
| Number of Batteries: | 0 |
| Number of Conductors: | 3 |
| Number of Poles: | 2 |
| Product Name: | RUSSELLSTOLL |
| Product Type: | MaxGard Interconnection Systems |
| Special Functions: | Explosion-proof waterproof non-interlocked receptacle O-ring sealed along with optional control contacts fully UL listed. |
| Standards: | UL E68085 |
| Voltage Rating: | 125 V |
| |
| Data Sheet, Technical Information: | DSRE3107NA000 |
| Instructions and Manuals: | DSRE3107NA000 |
| |
| ETIM 6: | EC001322 - Round socket/plug for high currents |
| ETIM 7: | EC001322 - Round socket/plug for high currents |
| UNSPSC: | 39121404 |
| IDEA Granular Category Code (IGCC): | 4528 >> Electrical sleeves |
