General Information | |
| Extended Product Type: | DY DCF77 |
| Product ID: | 2CSM250421R1000 |
| EAN: | 8012542504214 |
| Catalog Description: | DY DCF77 Digital Time switch |

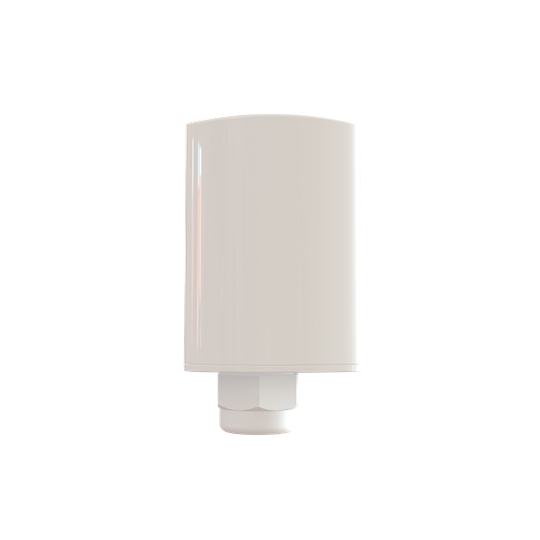

| Long Description: | DCF77 antenna to be used with yearly time switch DY365 |
| |
| Standards: | EN-301 489-1 |
| EN-301 489-3 | |
| EN-301 489-19 | |
| EN-300 330 | |
| EN-60950-1 | |
| EN 50581 | |
| Product Name: | Digital Time switch |
| Function: | Antenna |
| Rated Frequency (f): | 50 ... 60 Hz |
| Power Loss: | 0.048 V·A |
| Power Supply: | 12 V DC |
| Number of Connections: | 31 |
| Tightening Torque: | 0.5 N·m |
| Meter Type: | Digital |
| Mounting Type: | Wall |
| Cable Length: | 100 m |
| Connecting Capacity: | Solid 1.5 mm² |
| |
| Ambient Air Temperature: | Operation 0 ... +50 °C |
| Storage -10 ... +60 °C | |
| Degree of Protection: | Housing IP20 |
| |
| Product Net Width: | 41 mm |
| Product Net Height: | 89 mm |
| Product Net Depth / Length: | 52 mm |
| Product Net Weight: | 0.100 kg |
| |
| Package Level 1 Units: | 1 piece |
| Package Level 1 Width: | 62 mm |
| Package Level 1 Height: | 56 mm |
| Package Level 1 Depth / Length: | 120 mm |
| Package Level 1 Gross Weight: | 0.145 kg |
| Package Level 1 EAN: | 8012542504214 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85364900 |
| E-Number (Sweden): | 1330656 |
| Country of Origin: | Italy (IT) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 2CSC441020D2701 |
| Instructions and Manuals: | 9AKK107680A8468 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 9AKK107991A8329 |
| Instructions and Manuals: | 9AKK107680A8468 |
| |
| ETIM 6: | EC002305 - Digital time switch for distribution board |
| ETIM 7: | EC002305 - Digital time switch for distribution board |
| ETIM 8: | EC002305 - Digital time switch for distribution board |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 85364900 |
| Object Classification Code: | K |
