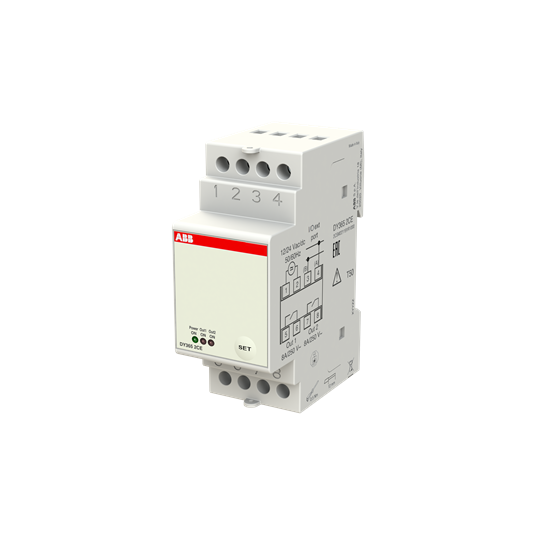

Article: DY365 2CE
We find the right product
for you
Official reseller
Expert engineering support
Configuration
):
General Information | |
| Extended Product Type: | DY365 2CE |
| Product ID: | 2CSM221191R1000 |
| EAN: | 8012542211914 |
| Catalog Description: | DY365 2CE Digital Time switch |
| Long Description: | 2 channel extension to be used with DY365 |
| |
| Standards: | EN 60730-2-7 |
| EN-301 489-1 | |
| EN-301 489-3 | |
| EN-301 489-17 | |
| EN-301 489-19 | |
| EN-300 328 | |
| EN-62479 | |
| EN-60950-1 | |
| EN 50581 | |
| Product Name: | Digital Time switch |
| Function: | Channel extension |
| Rated Operational Voltage: | 12 / 24 V |
| Supply Voltage: | 12 / 24 V |
| Maximum Switching Current: | 16 A |
| Rated Frequency (f): | 50 ... 60 Hz |
| Power Consumption (@P | |
| cons | 0.15 W |
| Power Supply: | 12 V AC |
| 24 V DC | |
| Number of Channels: | 2 |
| Tightening Torque: | 0.5 N·m |
| Meter Type: | Digital |
| Mounting Type: | DIN rail |
| |
| Ambient Air Temperature: | Operation 0 ... +50 °C |
| Storage -25 ... +70 °C | |
| Degree of Protection: | Housing IP20 |
| |
| Product Net Width: | 35 mm |
| Product Net Height: | 60 mm |
| Product Net Depth / Length: | 87 mm |
| Product Net Weight: | 0.185 kg |
| |
| Package Level 1 Units: | 1 piece |
| Package Level 1 Width: | 41 mm |
| Package Level 1 Height: | 81 mm |
| Package Level 1 Depth / Length: | 92 mm |
| Package Level 1 Gross Weight: | 0.210 kg |
| Package Level 1 EAN: | 8012542211914 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85364900 |
| E-Number (Sweden): | 1330659 |
| Country of Origin: | Italy (IT) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 2CSC441019D2701 |
| Instructions and Manuals: | 2CSM441047D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 9AKK107991A8329 |
| Instructions and Manuals: | 2CSM441047D0201 |
| |
| ETIM 6: | EC002305 - Digital time switch for distribution board |
| ETIM 7: | EC002305 - Digital time switch for distribution board |
| ETIM 8: | EC002305 - Digital time switch for distribution board |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 85364900 |
| Object Classification Code: | K |
