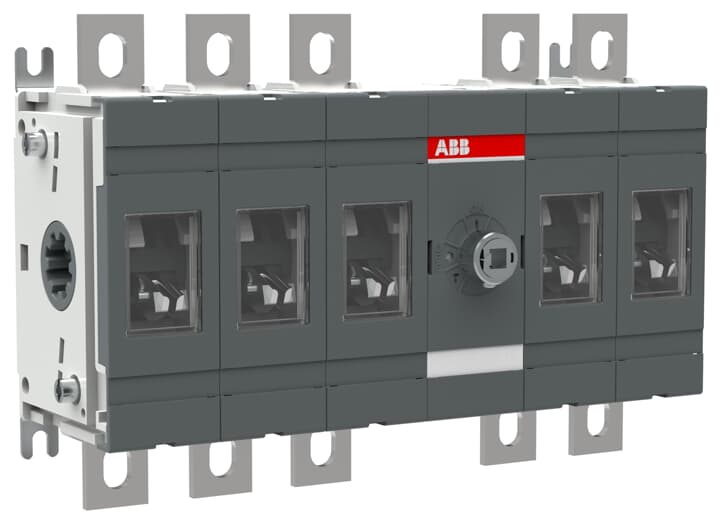

Article: OT250E32
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | OT250E32 |
| Product ID: | 1SCA105812R1001 |
| EAN: | 6417019397306 |
| Catalog Description: | OT250E32 SWITCH-DISCONNECTOR |
| Long Description: | OT250E32 SWITCH-DISCONNECTOR |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85365080 |
| Country of Origin: | Finland (FI) |
| Popular Downloads | |
| Instructions and Manuals: | 1SCC301031M0220 |
| |
| Product Net Width: | 220.5 mm |
| Product Net Height: | 150 mm |
| Product Net Depth / Length: | 82.5 mm |
| Product Net Weight: | 2.1 kg |
| |
| Rated Operational Current AC-21B (Ie): | (690 V) 250 A |
| Rated Operational Current DC-21B (Ie): | (800 V) 250 A |
| Conventional Thermal Current (Ithe): | Fully Enclosed 250 A |
| Rated Impulse Withstand Voltage (Uimp): | 12 kV |
| Rated Insulation Voltage (Ui): | acc. to IEC/EN 60664-1 1000 V |
| Rated Operational Voltage: | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm): | (690 V) 30 kA |
| Rated Short-time Withstand Current (Icw): | for 1 s 8 kA |
| Power Loss: | at Rated Operating Conditions per Pole 6.5 W |
| Pollution Degree: | 3 |
| Handle Type: | Handle and shaft not included |
| Position of Line Terminals: | Top In - Bottom Out |
| Bottom In - Top Out | |
| Operating Mode: | Front operated |
| Standards: | IEC 60947-3 |
| Special Functions: | No |
| Mounting Type: | Base mounting |
| Number of Poles: | 5 |
| Degree of Protection: | Front IP00 |
| Terminal Type: | Lug terminals |
| Tightening Torque: | acc. IEC 60947-1 15…22 N·m |
| Mechanical Durability: | 20000 |
| Lock Type: | No |
| |
| RoHS Status: | Following EU Directive 2011/65/EU |
| |
| Declaration of Conformity - CE: | 1SCC301163D2702 |
| DNV GL Certificate: | 1SCC301174D0204 |
| Instructions and Manuals: | 1SCC301031M0220 |
| RoHS Information: | 1SCC301149D0203 |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 190 mm |
| 7.5 in | |
| Package Level 1 Depth / Length: | 290 mm |
| 11.4 in | |
| Package Level 1 Height: | 110 mm |
| 4.3 in | |
| Package Level 1 Gross Weight: | 2.3 kg |
| 5.1 lb | |
| Package Level 1 EAN: | 6417019397306 |
| |
| Object Classification Code: | Q |
| ETIM 5: | EC000216 - Switch disconnector |
| ETIM 6: | EC000216 - Switch disconnector |
| ETIM 7: | EC000216 - Switch disconnector |
| ETIM 8: | EC000216 - Switch disconnector |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
