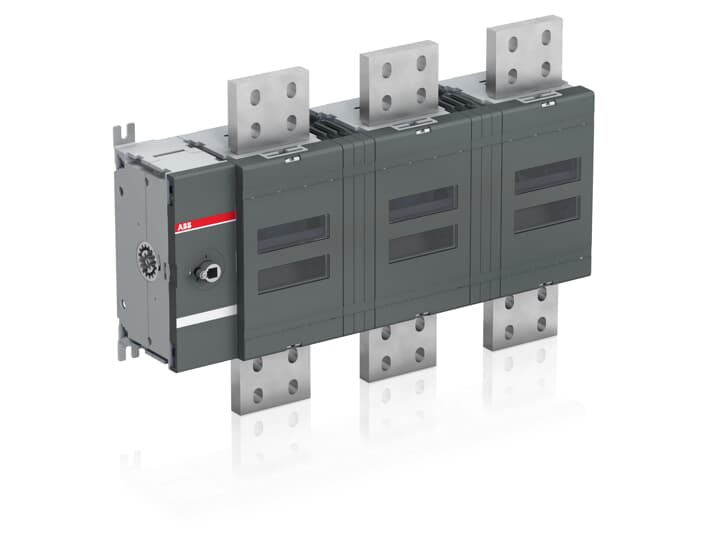

Article: OT4000E03W8/C9
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | OT4000E03W8/C9 |
| Product ID: | 1SCA134087R1001 |
| EAN: | 6417019630601 |
| Catalog Description: | OT4000E03W8/C9 SWITCH-DISCONNECTOR |
| Long Description: | OT4000E03W8/C9 SWITCH-DISCONNECTOR |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85365080 |
| Country of Origin: | Finland (FI) |
| Popular Downloads | |
| Instructions and Manuals: | 1SCC301082M0206 |
| |
| Product Net Width: | 1000 mm |
| Product Net Height: | 930 mm |
| Product Net Depth / Length: | 1200 mm |
| Product Net Weight: | 306 kg |
| |
| Rated Operational Current AC-22B (Ie): | (380 ... 415 V) 4000 A |
| Rated Impulse Withstand Voltage (Uimp): | 8 kV |
| Rated Insulation Voltage (Ui): | acc. to IEC/EN 60664-1 1000 V |
| Rated Operational Voltage: | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm): | (690 V) 220 kA |
| Rated Short-time Withstand Current (Icw): | for 0.3 s 100 kA |
| Power Loss: | at Rated Operating Conditions per Pole 130 W |
| Pollution Degree: | 3 |
| Handle Type: | Handle and shaft not included |
| Standards: | IEC 60947-3 |
| Number of Poles: | 3 |
| Degree of Protection: | Front IP00 |
| Terminal Type: | Lug terminals |
| Tightening Torque: | acc. IEC 60947-1 50…75 N·m |
| Mechanical Durability: | 5000 |
| Lock Type: | No |
| |
| RoHS Status: | Following EU Directive 2011/65/EU |
| |
| Declaration of Conformity - CE: | 1SCC301211D2701 |
| Instructions and Manuals: | 1SCC301082M0206 |
| RoHS Information: | 1SCC301149D0203 |
| |
| Package Level 1 Units: | box 9 piece |
| Package Level 1 Width: | 1000 mm |
| Package Level 1 Depth / Length: | 1200 mm |
| Package Level 1 Height: | 930 mm |
| Package Level 1 Gross Weight: | 365 kg |
| Package Level 1 EAN: | 6417019630601 |
| |
| Object Classification Code: | Q |
| ETIM 5: | EC000216 - Switch disconnector |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
