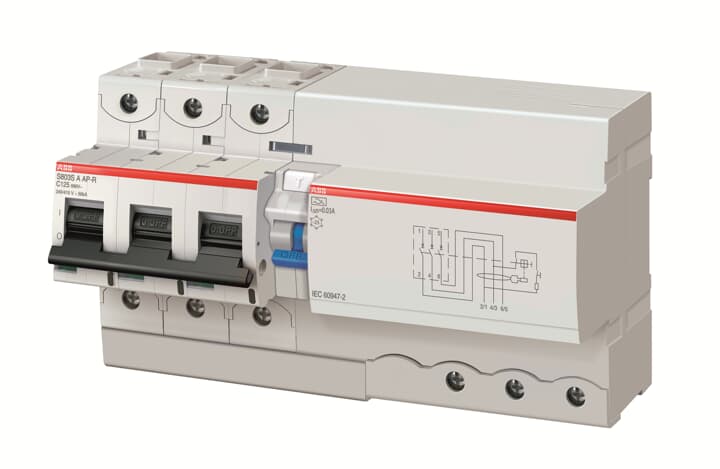

DS804ND125/.03AP-R Residual Current Circuit Breaker with Overcurrent Protection
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | DS804ND125/.03AP-R |
| Product ID: | 2CCB894004R0841 |
| EAN: | 7612271211509 |
| Catalog Description: | DS804ND125/.03AP-R Residual Current Circuit Breaker with Overcurrent Protection |
| Long Description: | The DS800 series residual circuit breaker with overcurrent protection (RCBO) is available as 2P, 3P and 4P device. It is for protection of end user against overload and short-circuit currents. The DS800 range offers several types of protection. Type A (pulse current sensitive residucal current protection device), type AC (alternating current sensitive residucal current protection devcie), type AS (pulse current sensitive residual current protection device - selective) and tpye A-AP-R (pulse current sensitive residual current protection devcie - short-time delay). |
| |
| Standards: | IEC 60947-2 |
| Product Name: | Residual Current Circuit Breaker with Overcurrent Protection |
| Tripping Characteristic: | D |
| Type of Residual Current: | A type |
| Rated Operational Voltage: | 240/415 V AC |
| Rated Current (In): | 125 A |
| Rated Residual Current: | 30 mA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu): | 36 kA |
| Maximum Breaking Capacity: | 50 kA |
| Power Loss: | 55.1 W |
| Number of Poles: | 4 |
| Number of Protected Poles: | 4 |
| Number of Earth Leakage Circuit Breakers (ELCBs): | 1 |
| Operating Characteristic: | Instantaneous (APR High Immunity) |
| Release Type: | D |
| Accessories Available: | Yes |
| |
| Environmental Information: | N/A |
| Technical UL/CSA | |
| Short-Circuit Current Rating (SCCR): | 30 mA |
| |
| Product Net Width: | 133.5 mm |
| Product Net Height: | 108.2 mm |
| Product Net Depth / Length: | 82.3 mm |
| Product Net Weight: | 1440 g |
| Product Net Length: | 82.3 mm |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 107 mm |
| Package Level 1 Height: | 110 mm |
| Package Level 1 Depth / Length: | 227 mm |
| Package Level 1 Gross Weight: | 1480 g |
| Package Level 1 EAN: | 7612271211509 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85362020 |
| Country of Origin: | Switzerland (CH) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | No declaration needed |
| Environmental Information: | N/A |
| Instructions and Manuals: | 9AKK107045A4601 |
| Popular Downloads | |
| Data Sheet, Technical Information: | No document needed |
| Instructions and Manuals: | 9AKK107045A4601 |
| |
| ETIM 6: | EC002281 - Distributor assembly with combination RCCB/MCB |
| ETIM 7: | EC002281 - Distributor assembly with combination RCCB/MCB |
| ETIM 8: | EC002281 - Distributor assembly with combination RCCB/MCB |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Business |
| CN8: | 85362020 |
| Object Classification Code: | F |
