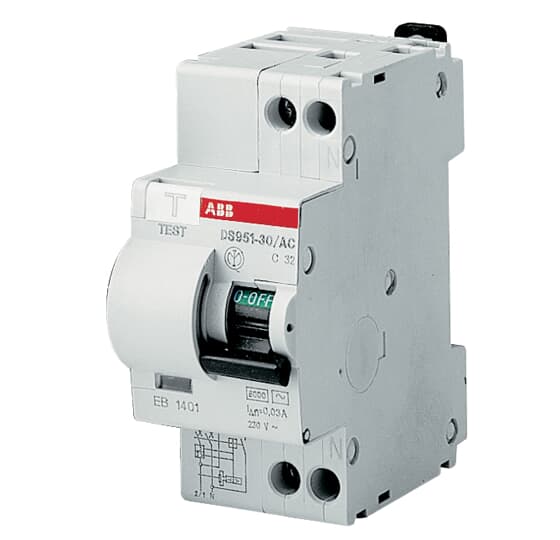

DS951 B10 A10 UL Residual Current Circuit Breaker with Overcurrent Protection
We find the right product
for you
Official reseller
Expert engineering support
Configuration
):
General Information | |
| Extended Product Type: | DS951 B10 A10 UL |
| Product ID: | 2CSR155117R0105 |
| EAN: | 8012542233756 |
| Catalog Description: | DS951 B10 A10 UL Residual Current Circuit Breaker with Overcurrent Protection |
| Long Description: | DS951 UL 1P+N RCBO is a device that in two modules width is able toprovide complete protection against overcurrent (overload and shortcircuit) and earth fault. DS951 UL are approved according to UL 1053 standard “Ground- Fault Sensing and Relaying Equipment” making them suitable for installation in equipments/ machines addressed to North American market. |
| |
| Standards: | IEC 61009-1 |
| IEC 61009-2-1 | |
| UL 1053 | |
| UL 1077 | |
| Product Name: | Residual Current Circuit Breaker with Overcurrent Protection |
| Tripping Characteristic: | B |
| Type of Residual Current: | A type |
| Rated Voltage (Ur): | 230-240 V AC |
| Rated Operational Voltage: | 230 … 240 V AC |
| Rated Insulation Voltage (Ui): | 500 V |
| Test Voltage (Ut): | 110 V |
| Rated Impulse Withstand Voltage (Uimp): | 4 kV |
| Input Voltage Type: | AC |
| Rated Current (In): | 10 A |
| Rated Residual Current: | 10 mA |
| Rated Short-Circuit Capacity (Icn): | (230 / 400 V AC) 6 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu): | 10 kA |
| Rated Conditional Short-Circuit Current (Inc): | 6 kA |
| Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics): | 6 kA |
| Maximum Surge Current: | 0.25 kA |
| Leakage Current Type: | A |
| Frequency (f): | 50/60 Hz |
| Rated Frequency (f): | 50...60 Hz |
| Power Loss: | 2 W |
| Power Supply Connection: | Arbitrary |
| Energy Limiting Class: | 3 |
| Electrical Endurance: | 10000 cycle |
| Mechanical Endurance (N | |
| endu | 20000 cycle |
| Number of Poles: | 1+N |
| Number of Protected Poles: | 1 |
| Operating Characteristic: | Instantaneous |
| Overvoltage Category: | III |
| Position of Neutral Terminals: | Right |
| Earthing Switch Type: | Undelayed |
| Release Type: | B |
| Options Provided: | Suitable for 110V applications |
| Accessories Available: | Yes |
| Connecting Capacity: | Busbar 10 mm² |
| Rigid 16 ... 16 mm² | |
| Flexible 16 ... 16 mm² | |
| Rated Cross-Section: | 4 - Multi-Wired 1...16 mm² |
| 1 - Solid-Core 16...16 mm² | |
| |
| Ambient Temperature: | -25...55 °C |
| Ambient Air Temperature: | Operation -25...55 °C |
| Degree of Protection: | IP20 |
| Pollution Degree: | 2 |
| RoHS Status: | Following EU Directive 2011/65/EU |
| Environmental Information: | ITSCE-LPD-ENV_DS9 |
| Technical UL/CSA | |
| Short-Circuit Current Rating (SCCR): | 0.01 A |
| |
| Width in Number of Modular Spacings: | 2 |
| Product Net Width: | 0.0356 m |
| Product Net Height: | 0.085 m |
| Product Net Depth / Length: | 0.070 m |
| Product Net Weight: | 0.200 kg |
| Built-In Depth (t2): | 70 mm |
| |
| Package Level 1 Units: | box 5 piece |
| Package Level 1 Width: | 0.22 m |
| Package Level 1 Height: | 0.080 m |
| Package Level 1 Depth / Length: | 0.090 m |
| Package Level 1 Gross Weight: | 1.000 kg |
| Package Level 1 EAN: | 8012542233763 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85363010 |
| Country of Origin: | Italy (IT) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 9AKK106713A5599 |
| Environmental Information: | ITSCE-LPD-ENV_DS9 |
| Instructions and Manuals: | 400-9936 |
| RoHS Information: | 9AKK106713A8874 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CSC422029L0201 |
| Instructions and Manuals: | 400-9936 |
| |
| ETIM 6: | EC000905 - Earth leakage circuit breaker |
| ETIM 7: | EC000905 - Earth leakage circuit breaker |
| ETIM 8: | EC000905 - Earth leakage circuit breaker |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 85363010 |
| Object Classification Code: | F |
