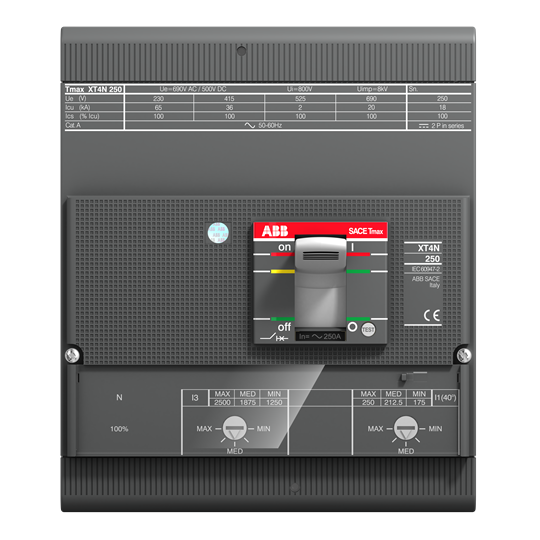

XT4V 250 TMA 100 500..1000 4p F F UL/CSA
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | XT4V 250 TMA 100 500..1000 4p F F UL/CSA |
| Product ID: | 1SDA075317R1 |
| EAN: | 8015644792947 |
| Catalog Description: | XT4V 250 TMA 100 500..1000 4p F F UL/CSA |
| Long Description: | XT4V 250 TMA 100 500..1000 4p F F UL/CSA |
| |
| EAN: | 8015644792947 |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85362090 |
| |
| Product Net Width: | 140 mm |
| Product Net Height: | 160 mm |
| Product Net Depth / Length: | 82.5 mm |
| Product Net Weight: | 3.05 kg |
| |
| Package Level 1 Units: | 1 piece |
| Package Level 1 Width: | 145 mm |
| Package Level 1 Height: | 210 mm |
| Package Level 1 Depth / Length: | 168 mm |
| Package Level 1 Gross Weight: | 3.5 kg |
| Package Level 1 EAN: | 8015644792947 |
| |
| RoHS Status: | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Technical UL/CSA | |
| Interrupting Rating acc. to UL489: | (240 V AC) 200 kA |
| (480 V AC) 150 kA | |
| (600 V AC) 65 kA | |
| (250 V DC) 2 Poles in Series 100 kA | |
| (600 V DC) 3 Poles in Series 85 kA | |
| |
| Circuit Breaker Type to be Associated: | Power Distribution |
| Current Type: | AC/DC |
| Electrical Durability: | 120 cycles per hour |
| 8000 cycle | |
| Mechanical Durability: | Nr. Operations 240 cycles per hour |
| Nr. Operations 25000 cycle | |
| Number of Poles: | 4 |
| Opening Time: | CB with SOR 15 ms |
| CB with UVR 15 ms | |
| Order Multiple: | 1 piece |
| Power Loss: | at Rated Operating Conditions per Pole 6.2 W |
| Product Main Type: | SACE Tmax XT |
| Product Name: | Moulded Case Circuit Breaker |
| Product Type: | CB |
| Rated Current (In): | 100 A |
| Rated Voltage (Ur): | 600 V |
| Rated Instantaneous Short-Circuit Current Setting (Ii): | 500…1000 A |
| Rated Operational Voltage: | 600 V AC |
| 600 V DC | |
| Rated Uninterrupted Current (Iu): | 250 A |
| Release: | TMA |
| Release Type: | TM |
| Setting Range: | 70...100 A |
| Short-Circuit Performance Level: | V |
| Standards: | UL |
| Sub-type: | XT4 |
| Suitable for Product Class: | SACE Tmax XT |
| Terminal Connection Type: | Fixed Circuit-Breakers |
| Version: | F |
| |
| Data Sheet, Technical Information: | 1SDC210200D0206 |
| 1SDC210199D0206 | |
| Declaration of Conformity - CE: | 9AKK106713A5529 |
| Environmental Information: | 1SDL000190R0004 |
| Instructions and Manuals: | 1SDH000722R0003 |
| 1SDH000721R0505 | |
| REACH Declaration: | LB-DT 18-21D |
| RoHS Information: | LB-DT 17-21D |
| |
| ETIM 4: | EC000228 - Power circuit-breaker for trafo/generator/installation prot. |
| ETIM 5: | EC000228 - Power circuit-breaker for trafo/generator/installation prot. |
| ETIM 6: | EC000228 - Power circuit-breaker for trafo/generator/installation prot. |
| ETIM 7: | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
