Article: E10721
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | E10721 |
| Product ID: | 7TAI029620R0071 |
| EAN: | 5414363150381 |
| Catalog Description: | NON-INS - TUB RING TERM, 6, 5/16, M |

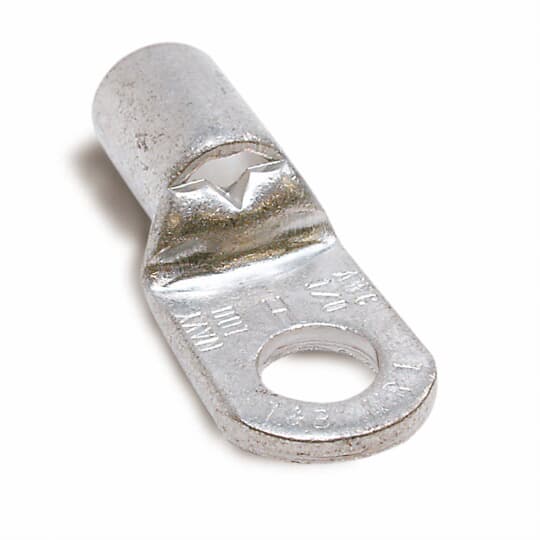

| Long Description: | Non-Insulated Tubular Ring Terminal, Length 1.38 Inches, Width .60 Inches, Bolt Hole 5/16 Inch, Wire Range 6/6AN, Copper, Tin Plated |
| |
| EAN: | 5414363150381 |
| UPC: | 786210829623 |
| |
| Product Net Length: | 0, mm |
| |
| Package Level 1 Units: | 200 piece |
| Package Level 1 Width: | 4 in |
| 102 mm | |
| Package Level 1 Height: | 3 in |
| 76 mm | |
| Package Level 1 Depth / Length: | 4 in |
| 102 mm | |
| Package Level 2 Units: | 2000 piece |
| Package Level 2 Width: | 8.8 in |
| 224 mm | |
| Package Level 2 Height: | 3.9 in |
| 99 mm | |
| Package Level 2 Depth / Length: | 21.4 in |
| 544 mm | |
| |
| Brand / Label: | Sta-Kon |
| Color: | Metallic |
| Effective Date: | 19680820 |
| Material: | Copper |
| Number of Batteries: | 0 |
| Product Name: | ELECTRICAL TERMINAL |
| Product Type: | Non-Insulated Ring Terminal |
| Special Functions: | These non-insulated ring terminals are made of electrolytic copper for high conductivity. They can be installed with crimping tools having a single indentor or double indentor (recommended for solid wire). |
| Standards: | UL E9809 |
| Voltage Rating: | 600 V |
| Wire Size: | 6 AWG |
| |
| Data Sheet, Technical Information: | E10721 |
| Instructions and Manuals: | E10721 |
| |
| ETIM 6: | EC001051 - Tube cable lug for copper conductors |
| ETIM 7: | EC001051 - Tube cable lug for copper conductors |
| UNSPSC: | 39121432 |
| WEEE Category: | Product Not in WEEE Scope |
| IDEA Granular Category Code (IGCC): | 4603 >> Electrical terminals |
