Article: DTW14
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | DTW14 |
| Product ID: | 7TAH007050R0015 |
| EAN: | 5414363150282 |
| Catalog Description: | CU TP TRANSITION WASHER 1/4INBOLT |

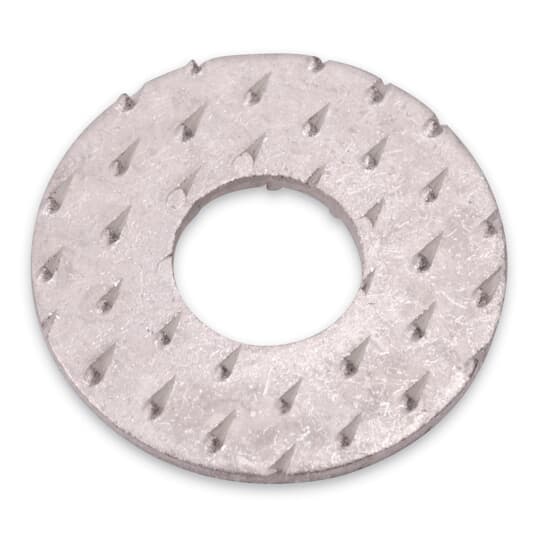

| Long Description: | Transition Washer for Connecting Aluminum/Aluminum, Aluminum/Copper and Aluminum/Copper Lugs and Bus Bar,Outer Diameter 17.3mm (0.68 Inch), Inner Diameter 6.9mm (0.27 Inch), Stud Size 1/4 Inch, Copper Alloy, Tin Plated |
| |
| EAN: | 5414363150282 |
| UPC: | 786210868660 |
| |
| Product Net Length: | 0, mm |
| |
| Package Level 1 Units: | 100 piece |
| Package Level 1 Width: | 2.8 in |
| 71 mm | |
| Package Level 1 Height: | 2.3 in |
| 58 mm | |
| Package Level 1 Depth / Length: | 3.3 in |
| 84 mm | |
| Package Level 2 Units: | 1000 piece |
| Package Level 2 Width: | 6.7 in |
| 170 mm | |
| Package Level 2 Height: | 4.2 in |
| 107 mm | |
| Package Level 2 Depth / Length: | 16.2 in |
| 411 mm | |
| |
| Application: | Teeth on the transition washers penetrate aluminum and copper oxides, enabling copper to aluminum connections to be made in a bolted joint without the use of inhibiting compounds. |
| Brand / Label: | Color Keyed / Blackburn |
| Effective Date: | 19860122 |
| Inside Diameter: | 0.27 in |
| 6.9 mm | |
| Material: | Copper |
| Number of Batteries: | 0 |
| Outside Diameter: | 0.68 in |
| 17.3 mm | |
| Product Name: | COLOR-KEYED COMPRESSION |
| Product Type: | Transition Washer |
| Standards: | UL E9809 |
| Suitable For: | 1/4 Inch |
| Surface Finishing: | Tin Plated |
| Thickness: | 0.035 in |
| 0.89 mm | |
| |
| Data Sheet, Technical Information: | DTW14 |
| Instructions and Manuals: | DTW14 |
| |
| ETIM 6: | EC002345 - Serrated lock washer |
| ETIM 7: | EC002345 - Serrated lock washer |
| UNSPSC: | 31161807 |
| WEEE Category: | Product Not in WEEE Scope |
| IDEA Granular Category Code (IGCC): | 2885 >> Flat washers |
