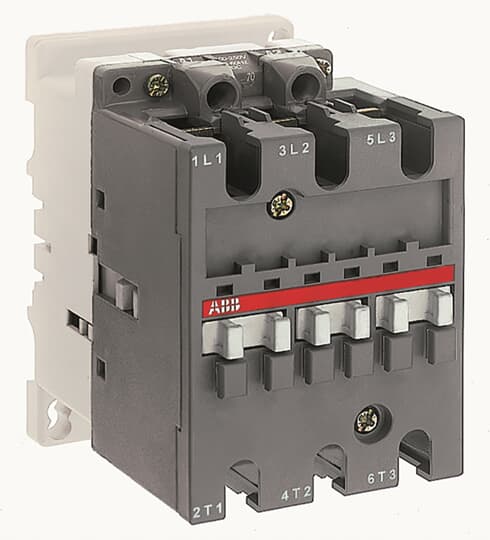

A63-30-00RT 24V50/60Hz Contactor
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | A63-30-00RT 24V50/60Hz |
| Product ID: | 1SBL371010R8100 |
| EAN: | 3471522243812 |
| Catalog Description: | A63-30-00RT 24V50/60Hz Contactor |
| Long Description: | A63 contactors are mainly used for controlling 3-phase motors and generally for controlling power circuits up to 690 V AC / 1000 V AC or 220 V DC. The contactors can also be used for many other applications such as isolation, capacitor switching, lighting. The A... series 1-stack 3-pole contactors are of the block type design. - Main poles and auxiliary contact blocks: 3 main poles, front and side-mounted add-on auxiliary contact blocks - Control circuit: AC operated with laminated magnet circuit - Accessories: a wide range of accessories is available. |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85364900 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 1SBC101015D0203 |
| Instructions and Manuals: | FPTC407767P0002 |
| |
| Product Net Width: | 70 mm |
| Product Net Depth / Length: | 108 mm |
| Product Net Height: | 110 mm |
| Product Net Weight: | 1.16 kg |
| |
| Number of Main Contacts NO: | 3 |
| Number of Main Contacts NC: | 0 |
| Number of Auxiliary Contacts NO: | 0 |
| Number of Auxiliary Contacts NC: | 0 |
| Rated Operational Current AC-1 (Ie): | (690 V) 40 °C 115 |
| (690 V) 55 °C 95 | |
| (690 V) 70 °C 80 | |
| Rated Operational Current AC-3 (Ie): | (415 V) 55 °C 65 A |
| (440 V) 55 °C 65 A | |
| (500 V) 55 °C 55 A | |
| (690 V) 55 °C 43 A | |
| (1000 V) 55 °C 25 A | |
| (380 / 400 V) 55 °C 65 A | |
| (220 / 230 / 240 V) 55 °C 65 | |
| Rated Operational Power AC-3 (Pe): | (415 V) 37 kW |
| (440 V) 37 kW | |
| (500 V) 37 kW | |
| (690 V) 37 kW | |
| (380 / 400 V) 30 kW | |
| (220 / 230 / 240 V) 18.5 kW | |
| Rated Control Circuit Voltage (Uc): | 50 Hz 24 V |
| 60 Hz 24 V | |
| Terminal Type: | Ring-Tongue Terminals |
| |
| RoHS Status: | Following EU Directive 2011/65/EU |
| |
| CB Certificate: | CB_FR_596544 |
| CQC Certificate: | CQC2018010304129267 |
| CQC2008010309289461 | |
| Declaration of Conformity - CCC: | 2020980304001622 |
| 2020980304001226 | |
| Declaration of Conformity - CE: | 1SBD250810U1000 |
| EAC Certificate: | EAC_RU C-FR ME77 B03599 |
| Environmental Information: | 1SBD250009E1003 |
| Instructions and Manuals: | FPTC407767P0002 |
| RoHS Information: | 1SBD250810U1000 |
| |
| Package Level 1 Units: | 1 piece |
| Package Level 1 Width: | 140 mm |
| Package Level 1 Depth / Length: | 146 mm |
| Package Level 1 Height: | 96 mm |
| Package Level 1 Gross Weight: | 1.16 kg |
| Package Level 1 EAN: | 3471522243812 |
| |
| Object Classification Code: | Q |
| ETIM 4: | EC000066 - Magnet contactor, AC-switching |
| ETIM 5: | EC000066 - Magnet contactor, AC-switching |
| ETIM 6: | EC000066 - Power contactor, AC switching |
| ETIM 7: | EC000066 - Power contactor, AC switching |
| eClass: | V11.0 : 27371003 |
| UNSPSC: | 39121529 |
