Article: ABB3125P6W
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | ABB3125P6W |
| Product ID: | 2CMA100595R1000 |
| EAN: | 7392696005951 |

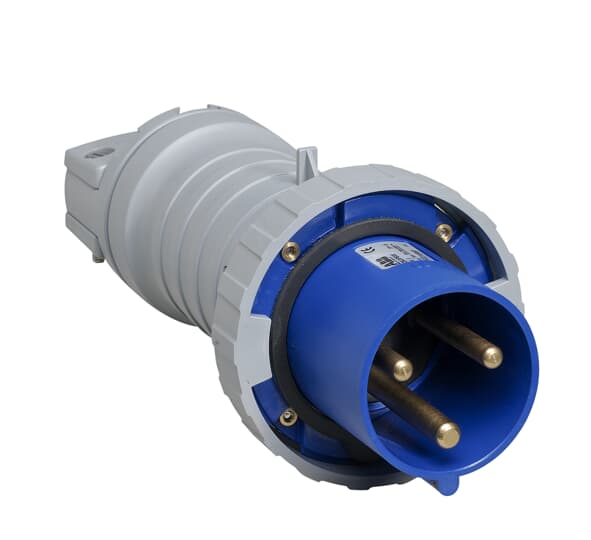

| Catalog Description: | ABB3125P6W Industrial Plug |
| Long Description: | IEC Plug 125A 2P3W 220-240V Clock Position Of Grounding Contact 6 hour Color code Blue |
| |
| EAN: | 7392696005951 |
| Country of Origin: | Czech Republic (CZ) |
| Minimum Order Quantity: | 1 piece |
| |
| Product Net Width: | 127 mm |
| Product Net Height: | 127 mm |
| Product Net Weight: | 1.44 kg |
| Mechanical Drawings: | 9AKK107492A4190 |
| |
| Package Level 1 Width: | 138 mm |
| Package Level 1 Depth / Length: | 158 mm |
| Package Level 1 Height: | 345 mm |
| Package Level 1 Gross Weight: | 1.44 kg |
| Package Level 1 EAN: | 7392696005951 |
| Package Level 1 Units: | box 1 piece |
| |
| CSA Certificate: | 2CHC660174X0201 |
| Declaration of Conformity - CE: | 2CMC700005D0022 |
| Environmental Information: | 2CMC000056M0000 |
| RoHS Information: | 2CMC700005D0020 |
| UL Certificate: | E109550-19950105 |
| REACH Declaration: | 2CMC700005D0022 |
| |
| Additional Information: | 2P+E |
| Ambient Temperature: | -25 ... 40 °C |
| Cable Cross-Section: | 16 ... 50 mm² |
| Cable Entry Position: | Anti-kink sleeve |
| Color: | Blue |
| Connection Type: | Screw Clamp |
| Degree of Protection: | IP67 |
| IP69 | |
| Frequency (f): | 50 Hz |
| 60 Hz | |
| Function: | Plug |
| Housing Material: | Thermoplastic (PBT) |
| Invoice Description: | Ind. P&S#ABB3125P6W |
| Number of Poles: | 3 |
| Order Multiple: | 1 piece |
| Product Main Type: | TP |
| Product Name: | Industrial Plug |
| Protection Type: | Watertight |
| Rated Current (In): | 125 A |
| Rated Voltage (Ur): | 200 ... 250 V |
| Recommended Screw Driver: | PH2 |
| Standards: | UL 1682, 1686 / CSA C22.2 No. 182.1-13 |
| Suitable for Product Class: | IEC Industrial Plugs and Sockets |
| Instructions and Manuals: | 2CMC000040M0001 |
| Installation Manual: | 2CMC700052M0001 |
| RAL Number: | RAL 7001 - Silver Grey |
| |
| eClass: | 27440509 |
| UNSPSC: | 39121402 |
