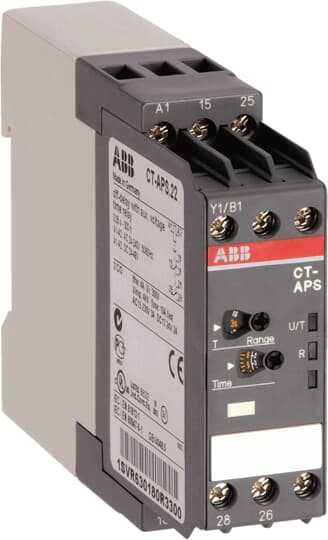

CT-APS.22 Time relay, OFF-delay 2c/o, 24-48VDC, 24-240VAC
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | CT-APS.22 |
| Product ID: | 1SVR630180R3300 |
| EAN: | 4016779658423 |
| Catalog Description: | CT-APS.22 Time relay, OFF-delay 2c/o, 24-48VDC, 24-240VAC |
| Long Description: | The CT-APS.22 is a single-function electronic time relay from the CT-S timer range. It provides an OFF-delay (delay on break) function with 10 time ranges from 0.05 s to 300 h.This time relay operates with a rated control supply voltage of 24 - 48 V DC / 24 - 240 V AC and has a 2 c/o (SPDT) output with contacts rated at 250 V / 4 A. A control input works with voltage-related (non-floating) triggering. A sealable transparent cover for protection against unauthorized changes is available as accessory. |
| |
| EAN: | 4016779658423 |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85364900 |
| Replacement Product ID (NEW): | 1SVR730180R3300 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CDC111102D0201 |
| Instructions and Manuals: | 1SVC630020M0000 |
| |
| Product Net Width: | 22.5 mm |
| Product Net Height: | 78 mm |
| Product Net Depth / Length: | 100 mm |
| Product Net Weight: | 0.126 kg |
| |
| Timer Relay Type: | OFF-Delay |
| Time Range: | 0.05 s ... 300 h |
| Rated Control Supply Voltage (Us): | 24 ... 240 V AC |
| 24 ... 48 V DC | |
| Output: | 2 c/o (SPDT) contacts |
| Terminal Type: | Screw Terminals |
| |
| RoHS Status: | Following EU Directive 2002/95/EC August 18, 2005 and amendment |
| |
| CB Certificate: | CB_DK-10152 |
| CCC Certificate: | CCC_2007010303255979_for_1SVR6 |
| cUL Certificate: | cUL508_E140448 |
| Data Sheet, Technical Information: | 2CDC111102D0201 |
| Declaration of Conformity - CE: | 1SAD938501-0114 |
| Environmental Information: | 1SAA981011-2402 |
| GL Certificate: | GL_33686-06HH |
| GOST Certificate: | GOST_8572616 |
| Instructions and Manuals: | 1SVC630020M0000 |
| RMRS Certificate: | RMRS_12.04010.250 |
| RoHS Information: | 1SAA981026-4401 |
| UL Certificate: | UL508_E140448 |
| |
| Package Level 1 Units: | 1 piece |
| Package Level 1 Width: | 81 mm |
| Package Level 1 Depth / Length: | 26 mm |
| Package Level 1 Height: | 106 mm |
| Package Level 1 Gross Weight: | 0.149 kg |
| Package Level 1 EAN: | 4016779658423 |
| |
| Object Classification Code: | K |
| ETIM 4: | EC001439 - Timer relay |
| ETIM 5: | EC001439 - Timer relay |
| ETIM 6: | EC001439 - Timer relay |
| ETIM 7: | EC001439 - Timer relay |
| eClass: | V11.0 : 27371605 |
| UNSPSC: | 39121519 |
