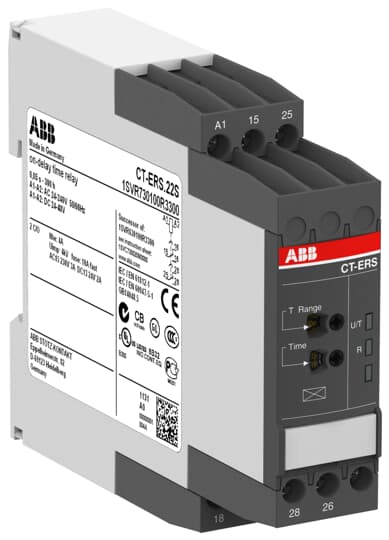

CT-ERS.22S Time relay, ON-delay 2c/o, 24-48VDC, 24-240VAC
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | CT-ERS.22S |
| Product ID: | 1SVR730100R3300 |
| EAN: | 4016779851466 |
| Catalog Description: | CT-ERS.22S Time relay, ON-delay 2c/o, 24-48VDC, 24-240VAC |
| Long Description: | The CT-ERS.22S is a single-function electronic time relay from the CT-S timer range. It provides an ON-delay (delay on make) function with 10 time ranges from 0.05 s to 300 h. This time relay operates with a rated control supply voltage of 24 - 48 V DC / 24 - 240 V AC and has a 2 c/o (SPDT) output with contacts rated at 250 V / 4 A. A sealable transparent cover for protection against unauthorized changes is available as accessory. The device offers screw connection technology with double-chamber cage connection terminals. |
| |
| EAN: | 4016779851466 |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85364900 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CDC110004C0210_01 |
| Instructions and Manuals: | 1SVC730020M0000 |
| |
| Product Net Width: | 22.5 mm |
| Product Net Height: | 85.6 mm |
| Product Net Depth / Length: | 103.7 mm |
| Product Net Weight: | 0.121 kg |
| |
| Timer Relay Type: | ON-Delay |
| Time Range: | 0.05 s ... 300 h |
| Rated Control Supply Voltage (Us): | 24 ... 240 V AC |
| 24 ... 48 V DC | |
| Rated Frequency (f): | 50 Hz |
| 60 Hz | |
| DC | |
| Output: | 2 c/o (SPDT) contacts |
| Terminal Type: | Screw Terminals |
| Rated Operational Current AC-12 (Ie): | (230 V) 4 A |
| Rated Operational Current AC-15 (Ie): | (230 V) 3 A |
| Rated Operational Current DC-12 (Ie): | (24 V) 4 A |
| Rated Operational Current DC-13 (Ie): | (24 V) 2 A |
| Minimum Switching Capacity: | 12 V |
| 10 mA | |
| Rated Impulse Withstand Voltage (Uimp): | Input Circuit 4 kV |
| Output Circuit 1 / Output Circuit 2 4 kV | |
| Rated Insulation Voltage (Ui): | Input Circuit / Output Circuit 500 V |
| Output Circuit 1 / Output Circuit 2 300 V | |
| Degree of Protection: | Housing IP50 |
| Terminals IP20 | |
| Overvoltage Category: | III |
| Pollution Degree: | 3 |
| Short-Circuit Protective Devices: | Output Circuit NC - F Type Fuses 6 A |
| Output Circuit NO - F Type Fuses 10 A | |
| Electrical Durability: | AC-12 100000 cycle |
| Mechanical Durability: | 30000000 cycle |
| Connecting Capacity: | Flexible with Ferrule 1x 0.5 ... 2.5 mm² |
| Flexible with Ferrule 2x 0.5 ... 1.5 mm² | |
| Flexible with Insulated Ferrule 1x 0.5 ... 2.5 mm² | |
| Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm² | |
| Flexible 1x 0.5 ... 2.5 mm² | |
| Flexible 2x 0.5 ... 1.5 mm² | |
| Rigid 1x 0.5 ... 4 mm² | |
| Rigid 2x 0.5 ... 2.5 mm² | |
| Tightening Torque: | 0.6 ... 0.8 N·m |
| Wire Stripping Length: | 8 mm |
| Recommended Screw Driver: | Pozidriv 1 |
| 0.8 x 4 | |
| 4.5 | |
| Mounting Position: | Any |
| Mounting on DIN Rail: | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
| TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 | |
| Standards: | CAN/CSA C22.2 No.14 |
| IEC/EN 63000 | |
| IEC/EN 61812-1 | |
| UL 508 | |
| Technical UL/CSA | |
| Maximum Operating Voltage UL/CSA: | Output Circuit 300 V AC |
| Contact Rating UL/CSA: | B300 |
| Connecting Capacity UL/CSA: | Flexible 1x 18-14 AWG |
| Flexible 2x 18-16 AWG | |
| Rigid 1x 20-12 AWG | |
| Rigid 2x 20-14 AWG | |
| Tightening Torque UL/CSA: | 7.08 in·lb |
| |
| Ambient Air Temperature: | Operation -25 ... +60 °C |
| Storage -40 ... +85 °C | |
| RoHS Status: | Following EU Directive 2011/65/EU |
| |
| CB Certificate: | CB_DK-5903-M1 |
| CCC Certificate: | CCC_2007010303255979 |
| CQC Certificate: | CQC2007010303255979 |
| cULus Certificate: | cULus508_20110711-E140448A |
| Data Sheet, Technical Information: | 2CDC110004C0210_01 |
| Declaration of Conformity - CCC: | 2020980303000207 |
| Declaration of Conformity - CE: | 1SVD981008 |
| Declaration of Conformity - UKCA: | 1SVD981008-10 |
| DNV GL Certificate: | DNV_GL_TAA00000XR |
| EAC Certificate: | EAC_RU_C-DE.ME77.B.00568/20 |
| Environmental Information: | 1SAC200095H0001 |
| Instructions and Manuals: | 1SVC730020M0000 |
| RMRS Certificate: | RMRS_1740021250 |
| RoHS Information: | 1SVD981008 |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 97 mm |
| Package Level 1 Depth / Length: | 30 mm |
| Package Level 1 Height: | 109 mm |
| Package Level 1 Gross Weight: | 0.144 kg |
| Package Level 1 EAN: | 4016779851466 |
| |
| Object Classification Code: | K |
| ETIM 4: | EC001439 - Timer relay |
| ETIM 5: | EC001439 - Timer relay |
| ETIM 6: | EC001439 - Timer relay |
| ETIM 7: | EC001439 - Timer relay |
| eClass: | V11.0 : 27371605 |
| UNSPSC: | 39121519 |
| E-Number (Finland): | 2712204 |
| E-Number (Sweden): | 4033116 |
