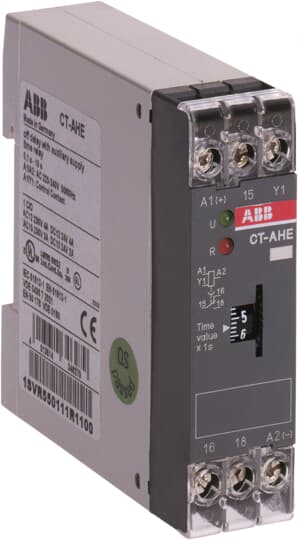

CT-AHE Time relay, OFF-delay 1c/o, 3-300s, 24VAC/DC
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | CT-AHE |
| Product ID: | 1SVR550118R2100 |
| EAN: | 4013614346316 |
| Catalog Description: | CT-AHE Time relay, OFF-delay 1c/o, 3-300s, 24VAC/DC |
| Long Description: | The CT-AHE is a single-function electronic time relay from the CT-E timer range. It provides an OFF-delay (delay on break) function with a time range from 3 s to 300 s. This time relay operates with a rated control supply voltage of 24 V AC / DC and has a 1 c/o (SPDT) output rated at 250 V / 4 A. A control input works with voltage-related (non-floating) triggering. |
| |
| EAN: | 4013614346316 |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85364900 |
| Replacement Product ID (NEW): | 1SVR508110R0000 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CDC111136D0201 |
| Instructions and Manuals: | 1SVC550000M9000 |
| |
| Product Net Width: | 22.5 mm |
| Product Net Height: | 78 mm |
| Product Net Depth / Length: | 78.5 mm |
| Product Net Weight: | 0.064 kg |
| |
| Timer Relay Type: | OFF-Delay |
| Time Range: | 3 ... 300 s |
| Rated Control Supply Voltage (Us): | 24 V AC/DC |
| Output: | 1 c/o (SPDT) contact |
| Terminal Type: | Screw Terminals |
| Rated Operational Current AC-12 (Ie): | (230 V) 4 A |
| Rated Operational Current AC-15 (Ie): | (230 V) 3 A |
| Rated Operational Current DC-12 (Ie): | (24 V) 4 A |
| Rated Operational Current DC-13 (Ie): | (24 V) 2 A |
| Mounting Position: | Any |
| Mounting on DIN Rail: | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 | |
| Standards: | CAN/CSA C22.2 No.14 |
| IEC/EN 63000 | |
| IEC/EN 61812-1 | |
| UL 508 | |
| |
| RoHS Status: | Following EU Directive 2011/65/EU |
| |
| CB Certificate: | CB_DK-8575 |
| CCC Certificate: | CCC_2010010303393101 |
| CQC Certificate: | CQC2010010303393101 |
| cUL Certificate: | cUL508_E140448 |
| Data Sheet, Technical Information: | 2CDC111136D0201 |
| Declaration of Conformity - CCC: | 2020980303000201 |
| Declaration of Conformity - CE: | 1SVD981002 |
| DNV GL Certificate: | DNV_GL_TAA00000F2 |
| EAC Certificate: | EAC_RU_C-DE.ME77.B.02016 |
| Environmental Information: | 1SAA981011-2402 |
| Instructions and Manuals: | 1SVC550000M9000 |
| RMRS Certificate: | RMRS_1740021250 |
| RoHS Information: | 1SVD981002 |
| UL Certificate: | UL508_E140448 |
| |
| Package Level 1 Units: | 1 piece |
| Package Level 1 Width: | 84.2 mm |
| Package Level 1 Depth / Length: | 24.6 mm |
| Package Level 1 Height: | 83.1 mm |
| Package Level 1 Gross Weight: | 0.077 kg |
| Package Level 1 EAN: | 4013614346316 |
| |
| Object Classification Code: | K |
| ETIM 4: | EC001439 - Timer relay |
| ETIM 5: | EC001439 - Timer relay |
| ETIM 6: | EC001439 - Timer relay |
| ETIM 7: | EC001439 - Timer relay |
| eClass: | V11.0 : 27371605 |
| UNSPSC: | 39121519 |
| E-Number (Finland): | 2712619 |
