Article: CTT18S
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | CTT18S |
| Product ID: | 2CPX052368R9999 |
| EAN: | 4011617523680 |

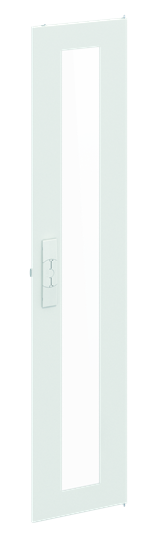

| Catalog Description: | CTT18S Door |
| Long Description: | Transparent door, with standard lock CZT1 for wall-mounting cabinets and compact distribution boards, panel width 1, 8 grid units, powder coated, color: RAL 9016. |
| |
| Product Name: | Door |
| Enclosure Type: | Door |
| Model Number: | Protective door |
| RAL Number: | RAL 9016 - Traffic White |
| Color: | Traffic white |
| |
| Degree of Protection: | IP44 |
| |
| Product Net Width: | 271 mm |
| Product Net Height: | 1221 mm |
| Product Net Depth / Length: | 14 mm |
| Product Net Weight: | 2.892 kg |
| |
| Package Level 1 Units: | pack 1 piece |
| Package Level 1 Width: | 275.000 mm |
| Package Level 1 Height: | 1225.000 mm |
| Package Level 1 Depth / Length: | 35.000 mm |
| Package Level 1 Gross Weight: | 3.008 kg |
| Package Level 1 EAN: | 4011617523680 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85389099 |
| Country of Origin: | Germany (DE) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 9AKK107680A4773 |
| Instructions and Manuals: | 2CPC133152M5601 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CPC000001C0101 |
| 2CPC000002C0101 | |
| 2CPC000003B0101 | |
| 2CPC000377C0101 | |
| Instructions and Manuals: | 2CPC133152M5601 |
| |
| ETIM 6: | EC000747 - Door/operating panel (switchgear cabinet) |
| ETIM 7: | EC000747 - Door/operating panel (switchgear cabinet) |
| ETIM 8: | EC000747 - Door/operating panel (enclosure/cabinet) |
| EPLAN Catalog Tree: | Mechanics / Housings / Door |
| WEEE Category: | Product Not in WEEE Scope |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 85389099 |
| Object Classification Code: | U |
