General Information | |
| Extended Product Type: | CWFB2216E/16A |
| Product ID: | 2CMA177242R1000 |
| EAN: | 7392696772426 |

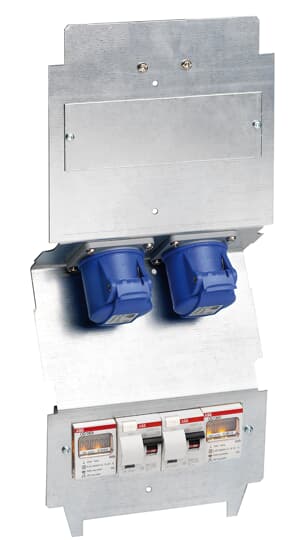

| Catalog Description: | CWFB2216E/16A Outlet Box Insert |
| Long Description: | Outlet box insert with2xIEC 216-6 (2P+E), 2xRCBO,DS201 6kA,1P+N,A,C16,30mA2xElectricity meter |
| |
| E-Number (Sweden): | 2446031 |
| E-Number (Finland): | 2446031 |
| E-Number (Norway): | 2446031 |
| EAN: | 7392696772426 |
| Country of Origin: | Czech Republic (CZ) |
| Minimum Order Quantity: | 1 piece |
| |
| Product Net Width: | 100 mm |
| Product Net Height: | 185 mm |
| Product Net Weight: | 1.7 kg |
| |
| Package Level 1 Width: | 410 mm |
| Package Level 1 Depth / Length: | 100 mm |
| Package Level 1 Height: | 185 mm |
| Package Level 1 Gross Weight: | 1.7 kg |
| Package Level 1 EAN: | 7392696772426 |
| Package Level 1 Units: | box 1 piece |
| Package Level 2 Width: | 800 mm |
| Package Level 2 Depth / Length: | 1200 mm |
| Package Level 2 Height: | 900 mm |
| Package Level 2 Gross Weight: | 67.6 kg |
| Package Level 2 EAN: | 7392696078238 |
| Package Level 2 Units: | pallet (lift) 28 piece |
| |
| Declaration of Conformity - CE: | 2CMC812001D0006 |
| Environmental Information: | 2CMC000071M0000 |
| RoHS Information: | 2CMC812001D0006 |
| REACH Declaration: | 2CMC812001D0006 |
| |
| Ambient Temperature: | -25 ... 40 °C |
| Cable Length: | 0 m |
| Color: | Silver |
| Connection Type: | Screw Clamp |
| Degree of Protection: | IP44 |
| Function: | Outlet Box Insert |
| Housing Material: | Aluminium |
| Invoice Description: | OutletBox#CWFB2216E/16A |
| Order Multiple: | 1 piece |
| Product Main Type: | CWF |
| Product Name: | Outlet Box Insert |
| Standards: | IEC 61439-3 |
| Suitable For: | Leisure |
| Instructions and Manuals: | 2CMC812031M0002 |
| Installation Manual: | 2CMC800001D0001,2CMC812022D0001, 2CMC812031M0002, 2CMC812003D0006 |
| |
| eClass: | 27440501 |
| UNSPSC: | 39120000 |
