Article: CWD2 B Mbus
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | CWD2 B Mbus |
| Product ID: | 2CMA106190R1000 |
| EAN: | 7392696061902 |

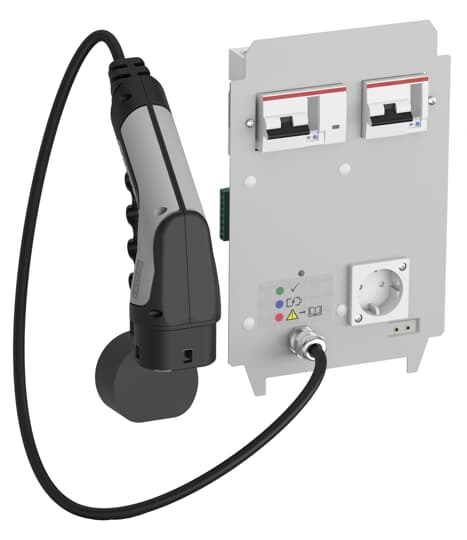

| Catalog Description: | CWD2 B Mbus Charging unit insert |
| Long Description: | Single-Home residential Charging, Charging unit inserts, Type2, Mode 3, 3.7 kW, 16A EV (Can be changed to 6A or 10A), 6A Schuko A, 230 V, One electricity meters kWh#B21 113-100 Advanced compact DIN-rail meter with an easy to read back lighted display. The meter is intended for use in the commercial or residential buildings etc. The meter can be used in 3 or 4 wire systems. The meter has several instrumentation values, 25 possible alarms and event logs. Three phase direct connected for active energy. One output for pulses or alarm etc. M-Bus communication.Accuracy class 1.0 (or B for MID meters). The meters is IEC approved + MID approved and verified., One RCBO,DS201 6kA,1P+N,A,C6,30mA and one RCBO,DS201 6kA,1P+N,A,C16,30mA, Four meter spiral cable |
| |
| EAN: | 7392696061902 |
| Country of Origin: | Czech Republic (CZ) |
| Minimum Order Quantity: | 1 piece |
| |
| Product Net Width: | 130 mm |
| Product Net Height: | 370 mm |
| Product Net Weight: | 3.150 kg |
| |
| Package Level 1 Width: | 310 mm |
| Package Level 1 Depth / Length: | 225 mm |
| Package Level 1 Height: | 200 mm |
| Package Level 1 Gross Weight: | 3.2 kg |
| Package Level 1 EAN: | 7392696061902 |
| Package Level 1 Units: | box 1 piece |
| |
| Declaration of Conformity - CE: | 2CMC812001D0006 |
| RoHS Information: | 2CMC812001D0006 |
| REACH Declaration: | 2CMC812001D0006 |
| |
| Ambient Temperature: | -25 ... 40 °C |
| Cable Length: | 4 m |
| Degree of Protection: | IP44 |
| Function: | Charging unit insert |
| Housing Material: | Aluminium |
| Invoice Description: | OutletBox#CWD2 B Mbus |
| Product Main Type: | CWD |
| Product Name: | Charging unit insert |
| Rated Current (In): | 16 EV A |
| 6 Schuko A | |
| Rated Voltage (Ur): | 230 V AC |
| Standards: | IEC 61439-3 |
| Suitable For: | Charging |
| Suitable for Product Class: | IEC Industrial Plugs and Sockets |
| Instructions and Manuals: | 2CMC000036M0001 |
