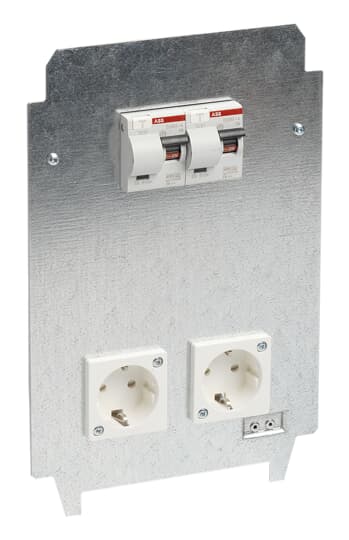

Article: CWB10 Insert
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | CWB10 Insert |
| Product ID: | 2CMA177374R1000 |
| EAN: | 7392696773744 |
| Catalog Description: | CWB10 Insert Outlet Box Insert |
| Long Description: | Outlet box insert with 2xSchuko outlet 10/16A_x000D_2xRCBO,DS201 6kA,1P+N,A,C10,30mA |
| |
| E-Number (Sweden): | 2446075 |
| E-Number (Finland): | 2446075 |
| E-Number (Norway): | 2446075 |
| EAN: | 7392696773744 |
| Country of Origin: | Czech Republic (CZ) |
| Minimum Order Quantity: | 1 piece |
| |
| Product Net Width: | 187 mm |
| Product Net Height: | 287 mm |
| Product Net Weight: | 1.4 kg |
| |
| Package Level 1 Width: | 192 mm |
| Package Level 1 Depth / Length: | 293 mm |
| Package Level 1 Height: | 110 mm |
| Package Level 1 Gross Weight: | 1.4 kg |
| Package Level 1 EAN: | 7392696773744 |
| Package Level 1 Units: | box 1 piece |
| Package Level 2 Width: | 800 mm |
| Package Level 2 Depth / Length: | 1200 mm |
| Package Level 2 Height: | 900 mm |
| Package Level 2 Gross Weight: | 154.4 kg |
| Package Level 2 EAN: | 7392696078511 |
| Package Level 2 Units: | pallet (lift) 96 piece |
| |
| RoHS Status: | Following EU Directive 2011/65/EU |
| |
| Declaration of Conformity - CE: | 2CMC812001D0006 |
| Environmental Information: | 2CMC000071M0000 |
| RoHS Information: | 2CMC812001D0006 |
| REACH Declaration: | 2CMC812001D0006 |
| |
| Ambient Temperature: | -25 ... 40 °C |
| Connection Type: | Screw Clamp |
| Degree of Protection: | IP44 |
| Function: | Box insert |
| Invoice Description: | OutletBox#CWB10 INSERT |
| Number of RCDs 30mA: | 2 |
| Number of RCDs: | 2 |
| Number of Schuko Outlets: | 2 |
| Order Multiple: | 1 piece |
| Product Main Type: | CWB |
| Product Name: | Outlet Box Insert |
| Protection Type: | Splashproof |
| Rated Current (In): | 10 A |
| Rated Residual Current: | 30 mA |
| Rated Voltage (Ur): | 230 ... 400 V |
| Standards: | IEC 61439-3 |
| Suitable For: | Service |
| Instructions and Manuals: | 2CMC812013M0001 |
| Installation Manual: | 2CMC800001D0001, 2CMC000027M0001 |
| |
| eClass: | 27149226 |
| UNSPSC: | 39120000 |
