General Information | |
| Extended Product Type: | CZE32 |
| Product ID: | 2CPX052478R9999 |
| EAN: | 4011617524786 |

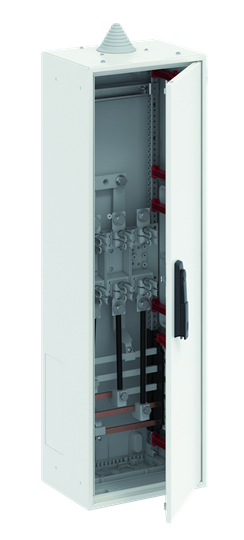

| Catalog Description: | CZE32 Feed-in enclosure |
| Long Description: | Incoming cabinet, completely assembled cabinet, mounting options: lateral, net-side connection compartment meter space with busbars, prepared for NH2, dimensions in mm (H x W x D): 950 x 300 x 215 |
| |
| Product Name: | Feed-in enclosure |
| Rated Operational Voltage: | Maximum 400 V |
| Operational Voltage: | 400 V |
| Rated Current (In): | 250 A |
| Number of Poles: | 5 |
| Number of Meter Panels: | 0 |
| Number of Panel Widths: | 1 |
| Number of TSG Panels: | 0 |
| Enclosure Type: | Feed-in enclosure |
| Enclosure Type of Height: | 2 |
| Mounting Type: | Surface-mounted |
| Door Type: | Single |
| |
| Degree of Protection: | IP30 |
| Protection Class: | Isolated |
| SCIP: | bf59e295-14af-4fa9-82ad-2f10302f6558 Germany (DE) |
| Simplified SCIP: | bf59e295-14af-4fa9-82ad-2f10302f6558 Germany (DE) |
| |
| Product Net Width: | 300 mm |
| Product Net Height: | 950 mm |
| Product Net Depth / Length: | 215 mm |
| Product Net Weight: | 21.177 kg |
| Built-In Depth (t2): | 190 mm |
| |
| Package Level 1 Units: | pack 1 piece |
| Package Level 1 Width: | 350.000 mm |
| Package Level 1 Height: | 1000.000 mm |
| Package Level 1 Depth / Length: | 223.000 mm |
| Package Level 1 Gross Weight: | 22.024 kg |
| Package Level 1 EAN: | 4011617524786 |
| Package Level 2 Units: | pallet (lift) 17 piece |
| Package Level 2 Width: | 800.000 mm |
| Package Level 2 Height: | 1880.000 mm |
| Package Level 2 Depth / Length: | 1200.000 mm |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85381000 |
| Country of Origin: | Germany (DE) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 9AKK107680A4773 |
| Instructions and Manuals: | 2CPC133155M5601 |
| 2CPC133169M5601 | |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CPC000003B0101 |
| Instructions and Manuals: | 2CPC133155M5601 |
| 2CPC133169M5601 | |
| |
| ETIM 6: | EC000262 - Meter cabinet equipped |
| ETIM 7: | EC000268 - Cable entry cabinet |
| ETIM 8: | EC000268 - Cable entry cabinet |
| EPLAN Catalog Tree: | Mechanics / Housings / General |
| WEEE Category: | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 85381000 |
| Object Classification Code: | U |
