Article: CZE60
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | CZE60 |
| Product ID: | 2CPX052491R9999 |
| EAN: | 4011617524915 |
| Catalog Description: | CZE60 Accessory feeding |

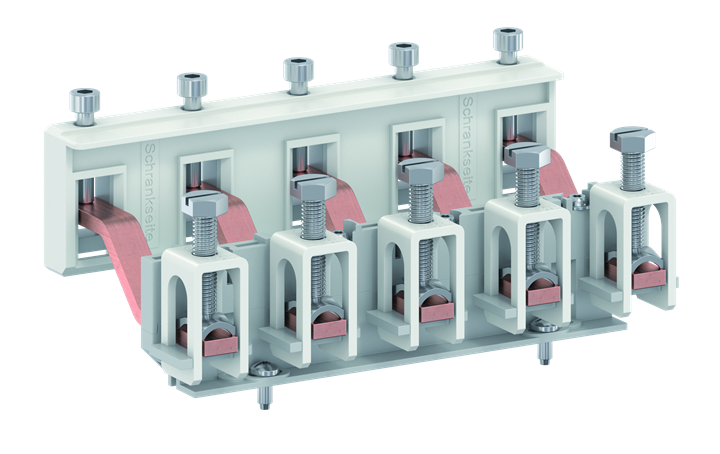

| Long Description: | Busbar connection set, incl. Cu 12 x 5 mm and 95 mm² busbar terminal blocks, 5-pole, suitable for cable incoming cabinet CZE220, installed left or right on the cabinet. |
| |
| Product Name: | Accessory feeding |
| Rated Current (In): | 250 A |
| Number of Poles: | 5 |
| |
| SCIP: | 5f752a14-7e0b-43de-98f3-709df89d4e5b Germany (DE) |
| Simplified SCIP: | 5f752a14-7e0b-43de-98f3-709df89d4e5b Germany (DE) |
| |
| Product Net Width: | 96 mm |
| Product Net Height: | 190 mm |
| Product Net Depth / Length: | 90 mm |
| Product Net Weight: | 0.938 kg |
| |
| Package Level 1 Units: | pack 1 piece |
| Package Level 1 Width: | 90.000 mm |
| Package Level 1 Height: | 50.000 mm |
| Package Level 1 Depth / Length: | 220.000 mm |
| Package Level 1 Gross Weight: | 0.976 kg |
| Package Level 1 EAN: | 4011617524915 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85369010 |
| Country of Origin: | Germany (DE) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 9AKK107992A8145 |
| Instructions and Manuals: | 2CPC133163M5601 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CPC000001C0101 |
| 2CPC000002C0101 | |
| 2CPC000003B0101 | |
| 2CPC000377C0101 | |
| Instructions and Manuals: | 2CPC133163M5601 |
| |
| ETIM 6: | EC000713 - Busbar coupler |
| ETIM 7: | EC000713 - Busbar coupler |
| ETIM 8: | EC000713 - Busbar coupler |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 85369010 |
| Object Classification Code: | U |
