Article: CZC4
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | CZC4 |
| Product ID: | 2CPX052466R9999 |
| EAN: | 4011617524663 |

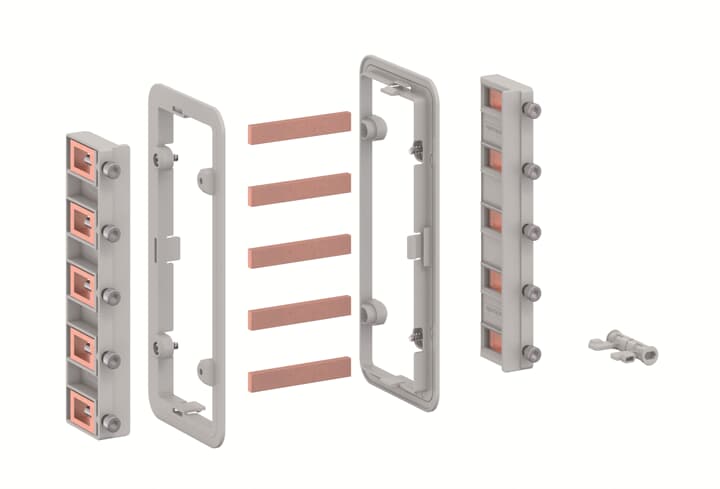

| Catalog Description: | CZC4 Copper busbar connection set |
| Long Description: | Busbar connector, for connecting Cu bars between two cabinets, with insulating frame and incl. mounting material, 5-pole, for Cu 12 x 5 mm, 250 A, suitable for ComfortLine A cabinets. |
| |
| Product Name: | Copper busbar connection set |
| Rated Current (In): | 250 A |
| Number of Poles: | 5 |
| Enclosure Type: | copper busbar connection set |
| |
| SCIP: | 62df4dd9-d725-495d-9f11-898209203257 Germany (DE) |
| Simplified SCIP: | 62df4dd9-d725-495d-9f11-898209203257 Germany (DE) |
| |
| Product Net Weight: | 0.895 kg |
| |
| Package Level 1 Units: | pack 1 piece |
| Package Level 1 Width: | 153.000 mm |
| Package Level 1 Height: | 109.000 mm |
| Package Level 1 Depth / Length: | 213.000 mm |
| Package Level 1 Gross Weight: | 0.931 kg |
| Package Level 1 EAN: | 4011617524663 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85369001 |
| Country of Origin: | Germany (DE) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 9AKK107992A8145 |
| Instructions and Manuals: | 2CPC133155M5601 |
| 2CPC133157M5601 | |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CPC000001C0101 |
| 2CPC000002C0101 | |
| 2CPC000003B0101 | |
| 2CPC000377C0101 | |
| Instructions and Manuals: | 2CPC133155M5601 |
| 2CPC133157M5601 | |
| |
| ETIM 6: | EC000713 - Busbar coupler |
| ETIM 7: | EC000713 - Busbar coupler |
| ETIM 8: | EC000713 - Busbar coupler |
| EPLAN Catalog Tree: | Mechanics / Busbars / Adapter |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 85369001 |
| Object Classification Code: | U |
