General Information | |
| Extended Product Type: | CZC18 |
| Product ID: | 2CPX052469R9999 |
| EAN: | 4011617524694 |
| Catalog Description: | CZC18 Copper busbar connection set |

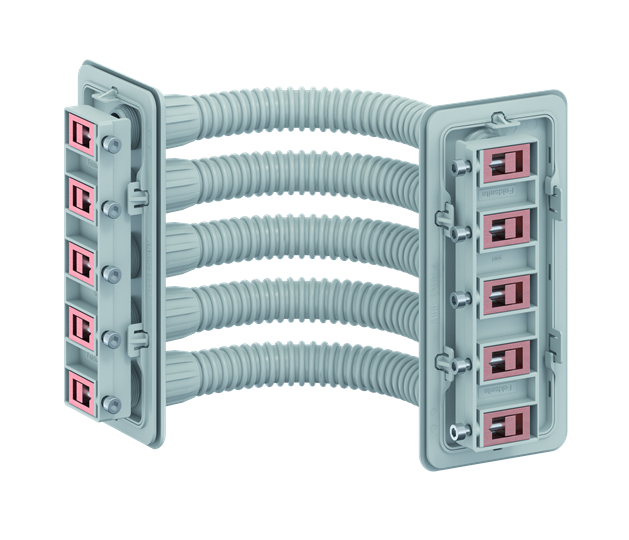

| Long Description: | Busbar corner connector, for connecting Cu bars between two cabinets over a corner, with insulating frame and incl. mounting material, 1 5-pole set, 315 A, for Cu 2 x 12 x 10 mm, suitable for ComfortLine A cabinets. |
| |
| Product Name: | Copper busbar connection set |
| Rated Current (In): | 315 A |
| Number of Poles: | 5 |
| Enclosure Type: | copper busbar connection set |
| |
| Product Net Weight: | 3.169 kg |
| |
| Package Level 1 Units: | pack 1 piece |
| Package Level 1 Width: | 210.000 mm |
| Package Level 1 Height: | 70.000 mm |
| Package Level 1 Depth / Length: | 300.000 mm |
| Package Level 1 Gross Weight: | 3.296 kg |
| Package Level 1 EAN: | 4011617524694 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85369001 |
| Country of Origin: | France (FR) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 9AKK107992A8145 |
| Instructions and Manuals: | 2CPC133159M5601 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CPC000001C0101 |
| 2CPC000002C0101 | |
| 2CPC000003B0101 | |
| 2CPC000377C0101 | |
| Instructions and Manuals: | 2CPC133159M5601 |
| |
| ETIM 6: | EC000713 - Busbar coupler |
| ETIM 7: | EC000713 - Busbar coupler |
| ETIM 8: | EC000713 - Busbar coupler |
| EPLAN Catalog Tree: | Mechanics / Busbars / Adapter |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 85369001 |
| Object Classification Code: | U |
