General Information | |
| Extended Product Type: | CZ3A |
| Product ID: | 2CPX052560R9999 |
| EAN: | 4011617525608 |
| Catalog Description: | CZ3A Accessory cabinet connection |

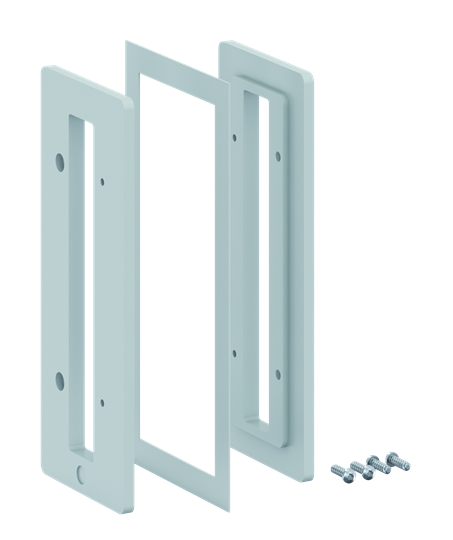

| Long Description: | Insulating frame for cabinet connection, for the side flange cut-outs and to ensure the insulation when assembling cabinets side by side, for the connection of A and B cabinets up to May 2020 with cabinets of the ComfortLine A and B series, with connection material. |
| |
| Product Name: | Accessory cabinet connection |
| Accessory Type: | coupler set |
| Model Number: | Coupling set, side |
| RAL Number: | RAL 9016 - Traffic White |
| Color: | Multi colour |
| |
| Product Net Width: | 25 mm |
| Product Net Height: | 232 mm |
| Product Net Depth / Length: | 115 mm |
| Product Net Weight: | 0.309 kg |
| |
| Package Level 1 Units: | pack 1 piece |
| Package Level 1 Width: | 180.000 mm |
| Package Level 1 Height: | 13.000 mm |
| Package Level 1 Depth / Length: | 250.000 mm |
| Package Level 1 Gross Weight: | 0.321 kg |
| Package Level 1 EAN: | 4011617525608 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85389099 |
| Country of Origin: | Germany (DE) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 9AKK107680A4773 |
| Instructions and Manuals: | No document needed |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CPC000001C0101 |
| 2CPC000002C0101 | |
| 2CPC000003B0101 | |
| 2CPC000377C0101 | |
| Instructions and Manuals: | No document needed |
| |
| ETIM 6: | EC002622 - Component for arrangement / baying system (switchgear cabinet) |
| ETIM 7: | EC002622 - Component for arrangement / baying system (switchgear cabinet) |
| ETIM 8: | EC002622 - Components for arrangement / baying system (enclosure/cabinet) |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 85389099 |
| Object Classification Code: | U |
