Article: CZ6
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | CZ6 |
| Product ID: | 2CPX052464R9999 |
| EAN: | 4011617524649 |
| Catalog Description: | CZ6 Flange |

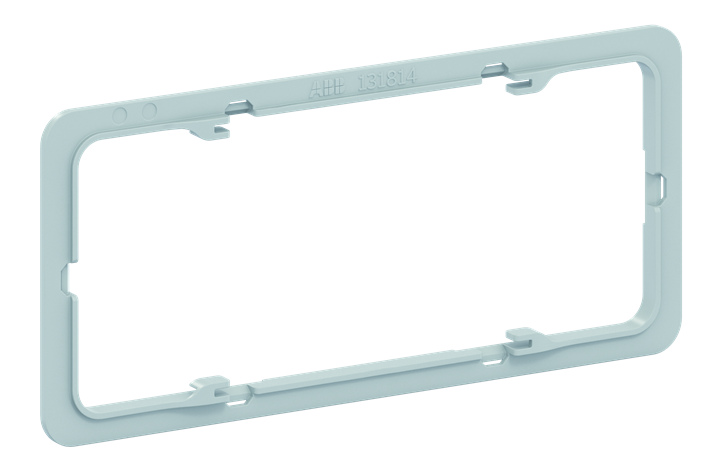

| Long Description: | Latching frame for using the flanges on the side flange cut-outs, suitable for ComfortLine A and B cabinets. |
| |
| Product Name: | Flange |
| RAL Number: | RAL 7035 - Light Grey |
| |
| Product Net Width: | 9.9 mm |
| Product Net Height: | 218 mm |
| Product Net Depth / Length: | 98.5 mm |
| Product Net Weight: | 0.04 kg |
| |
| Package Level 1 Units: | pack 1 piece |
| Package Level 1 Width: | 110.000 mm |
| Package Level 1 Height: | 12.000 mm |
| Package Level 1 Depth / Length: | 300.000 mm |
| Package Level 1 Gross Weight: | 0.042 kg |
| Package Level 1 EAN: | 4011617524649 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85389099 |
| Country of Origin: | Germany (DE) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 9AKK107680A4773 |
| Instructions and Manuals: | 2CPC133154M5601 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CPC000001C0101 |
| 2CPC000002C0101 | |
| 2CPC000003B0101 | |
| 2CPC000377C0101 | |
| Instructions and Manuals: | 2CPC133154M5601 |
| |
| ETIM 6: | EC002622 - Component for arrangement / baying system (switchgear cabinet) |
| ETIM 7: | EC002622 - Component for arrangement / baying system (switchgear cabinet) |
| ETIM 8: | EC002622 - Components for arrangement / baying system (enclosure/cabinet) |
| WEEE Category: | Product Not in WEEE Scope |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 85389099 |
| Object Classification Code: | U |
