Article: CZE220
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | CZE220 |
| Product ID: | 2CPX052470R9999 |
| EAN: | 4011617524700 |

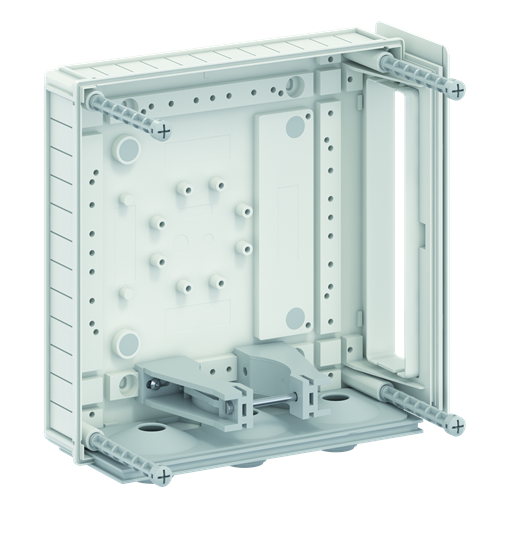

| Catalog Description: | CZE220 Feed-in enclosure |
| Long Description: | Incoming cabinet, suitable for ComfortLine A cabinets, mounting options: lateral and bottom, mounting method: wall-mounted, for indoor use, degree of protection IP31, color: RAL 9016, enclosure made of plastic, dimensions in mm (H x W x D): 250 x 250 x 165 |
| |
| Product Name: | Feed-in enclosure |
| Number of Poles: | 0 |
| Enclosure Type: | Feed-in enclosure |
| |
| Degree of Protection: | IP31 |
| Protection Class: | Isolated |
| |
| Product Net Width: | 250 mm |
| Product Net Height: | 250 mm |
| Product Net Depth / Length: | 165 mm |
| Product Net Weight: | 0.964 kg |
| |
| Package Level 1 Units: | pack 1 piece |
| Package Level 1 Width: | 253.000 mm |
| Package Level 1 Height: | 152.000 mm |
| Package Level 1 Depth / Length: | 253.000 mm |
| Package Level 1 Gross Weight: | 1.003 kg |
| Package Level 1 EAN: | 4011617524700 |
| Package Level 2 Units: | pallet (lift) 80 piece |
| Package Level 2 Width: | 800.000 mm |
| Package Level 2 Height: | 1100.000 mm |
| Package Level 2 Depth / Length: | 1200.000 mm |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85381000 |
| Country of Origin: | Germany (DE) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 9AKK107992A8145 |
| Instructions and Manuals: | 2CPC133160M5601 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CPC000001C0101 |
| 2CPC000002C0101 | |
| 2CPC000003B0101 | |
| 2CPC000377C0101 | |
| Instructions and Manuals: | 2CPC133160M5601 |
| |
| ETIM 6: | EC000268 - Cable entry cabinet |
| ETIM 7: | EC000268 - Cable entry cabinet |
| ETIM 8: | EC000268 - Cable entry cabinet |
| EPLAN Catalog Tree: | Mechanics / Housings / General |
| WEEE Category: | Product Not in WEEE Scope |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 85381000 |
| Object Classification Code: | U |
