Article: DG-M-1.16.11
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | DG-M-1.16.11 |
| Product ID: | 2CDG510012R0021 |
| EAN: | 4016779067416 |

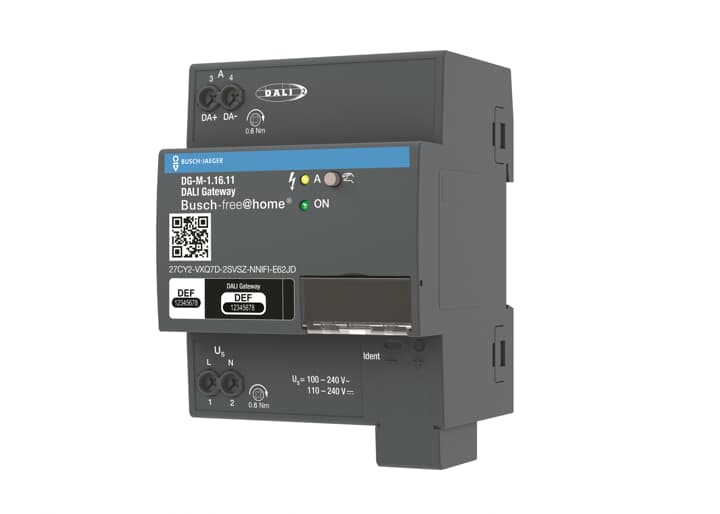

| Catalog Description: | DG-M-1.16.11 DALI Gateway, MDRC, BJE |
| Long Description: | The device is used to interface between DALI and free@home installations and incorporates the DALI power supply. One DALI output for up to 16 DALI Slaves. |
| |
| Product Name: | Lighting Control |
| Auxiliary Voltage AC/DC: | 110 ... 230 V AC |
| Input Voltage (Uin): | 85 ... 264 V AC |
| Power Loss: | 2 W |
| Communication Interface: | DALI interface |
| Number of Outputs: | 1 |
| Number of LEDs: | 2 |
| Compatible Bus Systems: | free@home |
| DALI | |
| Mounting Type: | DIN-rail |
| Software Updateable: | Yes |
| Manual Operation: | No |
| Color: | Grey |
| Number of Batteries: | 0 |
| |
| Degree of Protection: | IP20 |
| RoHS Status: | Following EU Directive 2011/65/EU |
| |
| Width in Number of Modular Spacings: | 4 |
| Product Net Width: | 70 mm |
| Product Net Height: | 90 mm |
| Product Net Depth / Length: | 63.5 mm |
| Product Net Weight: | 0.133 kg |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 92 mm |
| Package Level 1 Height: | 65 mm |
| Package Level 1 Depth / Length: | 77 mm |
| Package Level 1 Gross Weight: | 0.18 kg |
| Package Level 1 EAN: | 4016779067416 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85176200 |
| Country of Origin: | Germany (DE) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 2CDK507177D2701 |
| Instructions and Manuals: | 2CDG941221P0001 |
| RoHS Information: | 2CDK507177D2701 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 9AKK107680A3586 |
| Instructions and Manuals: | 2CDG941221P0001 |
| |
| ETIM 6: | EC001099 - System interface/media gateway for bus system |
| ETIM 7: | EC001099 - System interface/media gateway for bus system |
| ETIM 8: | EC001099 - System interface/media gateway for bus system |
| EPLAN Catalog Tree: | Electrical engineering / Logic items / General |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 8517 62 00 |
| UNSPSC: | 43222605 |
| eClass: | V11.0 : 27143136 |
| IDEA Granular Category Code (IGCC): | 6809 >> System interface/media gateway for bus system |
