Article: CR-U2S
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | CR-U2S |
| Product ID: | 1SVR405670R0000 |
| EAN: | 4013614529290 |

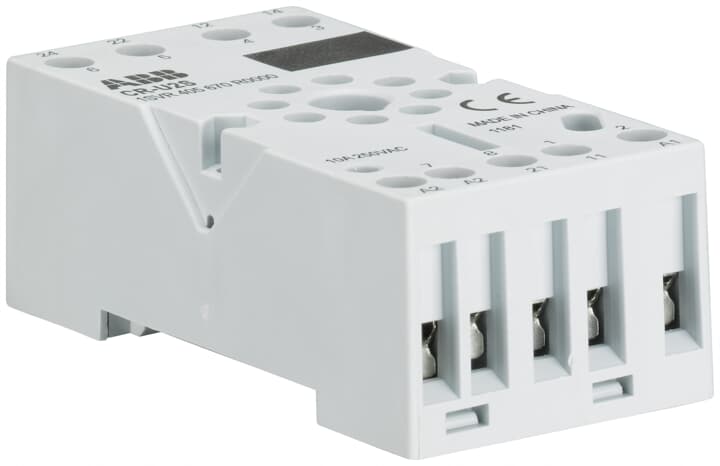

| Catalog Description: | CR-U2S Socket for 2c/o CR-U relay |
| Long Description: | The CR-U2S socket is from the CR-U (universal) relay range. The socket is suitable for CR-U relays with 2 c/o (SPDT) output contacts. The socket has screw connection terminals. Pluggable function modules, holder and marker are available as accessories |
| |
| Minimum Order Quantity: | 10 piece |
| Customs Tariff Number: | 85369010 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CDC110004C0210_05 |
| Instructions and Manuals: | 1SVC405650M9000 |
| |
| Product Net Width: | 38 mm |
| Product Net Height: | 26 mm |
| Product Net Depth / Length: | 75 mm |
| Product Net Weight: | 0.065 kg |
| |
| Function: | Accessory for interface relays CR-U |
| Sub-Function: | Socket for universal relays |
| Sub-Function 2: | Socket for universal relay 2 c/o and module |
| Output: | none |
| Terminal Type: | Screw Terminals |
| |
| Ambient Air Temperature: | Storage -25 ... +50 °C |
| RoHS Status: | Following EU Directive 2011/65/EU |
| |
| CSA Certificate: | CSA_262671_2785566 |
| cURus Certificate: | cURus508_E244328 |
| Declaration of Conformity - CE: | 1SVD982020-0001 |
| EAC Certificate: | EAC_RU_C-DE.ME77.B.00446-19 |
| Environmental Information: | 1SAA981009-2401 |
| Instructions and Manuals: | 1SVC405650M9000 |
| RoHS Information: | 1SVD982020-0001 |
| |
| Package Level 1 Units: | box 10 piece |
| Package Level 1 Width: | 133 mm |
| Package Level 1 Height: | 84 mm |
| Package Level 1 Depth / Length: | 81 mm |
| Package Level 1 Gross Weight: | 0.652 kg |
| Package Level 1 EAN: | 4013614374357 |
| |
| Object Classification Code: | K |
| ETIM 4: | EC001456 - Relay socket |
| ETIM 5: | EC001456 - Relay socket |
| ETIM 6: | EC001456 - Relay socket |
| ETIM 7: | EC001456 - Relay socket |
| eClass: | V11.0 : 27371603 |
| UNSPSC: | 39122335 |
| E-Number (Finland): | 2712799 |
| E-Number (Sweden): | 4005435 |
