General Information | |
| Extended Product Type: | DB25/32A |
| Product ID: | 1SAZ201108R0002 |
| EAN: | 4013614237744 |

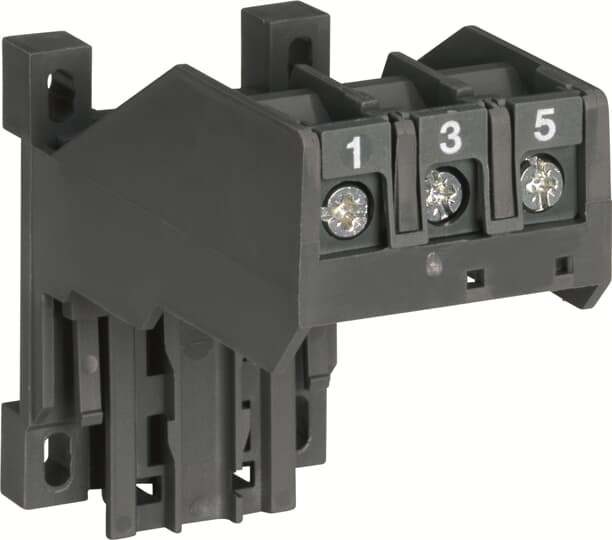

| Catalog Description: | DB25/32A Single Mounting Kit |
| Long Description: | DB25/32A Single monting kit for TA25DU |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85389099 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CDC106090M6801 |
| Dimension Diagram: | 1SAZ200403F0001 |
| |
| Product Net Width: | 44 mm |
| Product Net Height: | 84.5 mm |
| Product Net Depth / Length: | 85.8 mm |
| Product Net Weight: | 0.08 kg |
| |
| Rated Operational Voltage: | Main Circuit 690 V AC |
| Rated Operational Current AC-3 (Ie): | 32 A |
| Rated Frequency (f): | Main Circuit 50 Hz |
| Main Circuit 60 Hz | |
| Rated Impulse Withstand Voltage (Uimp): | Main Circuit 6 kV |
| Rated Insulation Voltage (Ui): | 690 V |
| Number of Poles: | 3 |
| Pollution Degree: | 3 |
| Suitable For: | TA25DU |
| Standards: | UL 60947-1 |
| UL 60947-4-1 | |
| Technical UL/CSA | |
| Maximum Operating Voltage UL/CSA: | Main Circuit 600 V AC |
| Ampere Rating UL/CSA: | 32 A |
| |
| Ambient Air Temperature: | Operation -25 ... +55 °C |
| Storage -40 ... +70 °C | |
| RoHS Status: | Following EU Directive 2011/65/EU |
| |
| ABS Certificate: | No Certificate Needed |
| cUL Certificate: | cUL_E48139 |
| Declaration of Conformity - CE: | 1SAD938518-0043 |
| DNV Certificate: | No Certificate Needed |
| GL Certificate: | No Certificate Needed |
| LR Certificate: | No Certificate Needed |
| RINA Certificate: | No Certificate Needed |
| RoHS Information: | 1SAD938517-0043 |
| UL Certificate: | UL_E48139 |
| |
| Package Level 1 Units: | 10 piece |
| Package Level 1 Width: | 238 mm |
| Package Level 1 Height: | 140 mm |
| Package Level 1 Depth / Length: | 82 mm |
| Package Level 1 Gross Weight: | 0.905 kg |
| Package Level 1 EAN: | 4013614515125 |
| |
| Object Classification Code: | Q |
| ETIM 4: | EC002498 - Accessories for low-voltage switch technology |
| ETIM 5: | EC002498 - Accessories for low-voltage switch technology |
| ETIM 6: | EC002498 - Accessories for low-voltage switch technology |
| ETIM 7: | EC002498 - Accessories for low-voltage switch technology |
| eClass: | V11.0 : 27371392 |
