General Information | |
| Extended Product Type: | 13600 |
| Product ID: | 7TAA131670R0000 |
| EAN: | 5414363137498 |

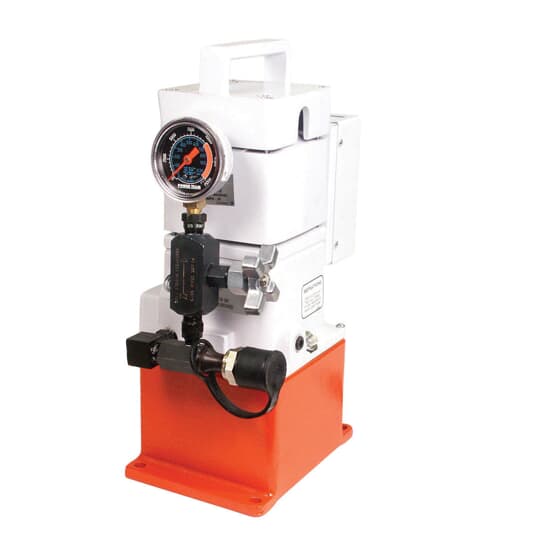

| Catalog Description: | ELEC HYDRAULIC PUMP |
| Long Description: | Electric Hydraulic Pump, Length 6 Inches, Width 8 Inches, Height 16 Inches, Reservoir Volume 104 Cubic Inches (0.45 Gallons), Includes Metal Carrying Case |
| |
| EAN: | 5414363137498 |
| |
| Package Level 1 Units: | 1 piece |
| Package Level 1 Width: | 10.1 in |
| 257 mm | |
| Package Level 1 Height: | 17.8 in |
| 452 mm | |
| Package Level 1 Depth / Length: | 11.7 in |
| 297 mm | |
| Package Level 2 Units: | 5 piece |
| Technical UL/CSA | |
| Horsepower Rating UL/CSA: | 1/2 Hp |
| |
| Application: | Crimping terminals/splices/disconnects. |
| Brand / Label: | Application Tooling |
| Dimensions: | 6 Inch Width x 8 Inch width x 16 Inch High |
| Effective Date: | 19750207 |
| Mounting Type: | 7/16 |
| Number of Batteries: | 0 |
| Process Pressure Rating: | 10000 PSIG |
| Product Name: | ELECTRICL HYDRAULIC PUMP |
| Product Type: | Hydraulic Pump |
| Special Functions: | 120V., 60Hz, 10000 PSI Operating Pressure |
| UPC: | 786210136004 |
| |
| Data Sheet, Technical Information: | 13600 |
| Instructions and Manuals: | 13600 |
| |
| ETIM 6: | EC001185 - Hydraulic drive unit |
| ETIM 7: | EC001185 - Hydraulic drive unit |
| UNSPSC: | 40151533 |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| IDEA Granular Category Code (IGCC): | 6009 >> Hydraulic pumps |
