General Information | |
| Extended Product Type: | 1461.21 |
| Product ID: | 2TKA000227G1 |
| EAN: | 6418677328817 |

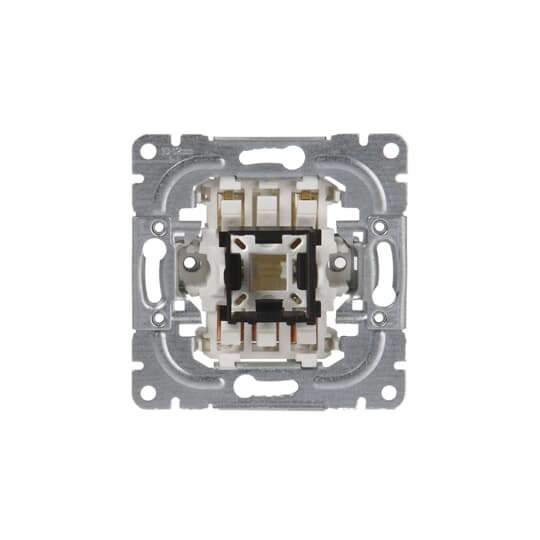

| Catalog Description: | 1461.21 Push switch insert |
| Long Description: | 1-push switch insert without rocker. All 1-gang rockers fit to the insert except 1788-xx. The switch has 1 closing contact and 2 X-terminals. The X-terminals can be used for extending other wires or connecting the signal light. The signal light can be connected as a search- or signal light or as a completely separate signal light. |
| |
| Product Name: | Push switch insert |
| Rated Voltage (Ur): | 250 V |
| Rated Current (In): | 10 A |
| Contacts Configuration: | 1 NO, 0 NC |
| Number of Rocker Switches: | 1 |
| Actuator Type: | Push button |
| Mounting Type: | Flush mounted (plaster) |
| Type of Fastening: | Mounting with Claw |
| Mounting with Screw | |
| Surface Finishing: | Surface protection: Untreated |
| Surface finishing: Matt | |
| Material: | Plastic |
| Legend: | Numbers |
| Model Number: | Single push button |
| Number of Batteries: | 0 |
| |
| Degree of Protection: | IP20 |
| |
| Product Net Width: | 70 mm |
| Product Net Height: | 70 mm |
| Product Net Depth / Length: | 26 mm |
| Product Net Weight: | 0.048 kg |
| |
| Package Level 1 Units: | box 10 piece |
| Package Level 1 Width: | 0.15 m |
| Package Level 1 Height: | 0.075 m |
| Package Level 1 Depth / Length: | 0.255 m |
| Package Level 1 Gross Weight: | 0.58 kg |
| Package Level 1 EAN: | 6418677328817 |
| Package Level 2 Units: | crate 100 piece |
| Package Level 2 Width: | 0.27 m |
| Package Level 2 Height: | 0.34 m |
| Package Level 2 Depth / Length: | 0.385 m |
| Package Level 2 Gross Weight: | 6.24 kg |
| Package Level 3 Units: | pallet (lift) 1800 piece |
| Package Level 3 Width: | 1.2 m |
| Package Level 3 Height: | 1.1 m |
| Package Level 3 Depth / Length: | 0.8 m |
| Package Level 3 Gross Weight: | 112.32 kg |
| |
| Minimum Order Quantity: | 10 piece |
| Customs Tariff Number: | 85365080 |
| E-Number (Finland): | 2126024 |
| E-Number (Sweden): | 1815344 |
| Country of Origin: | Finland (FI) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 9AKK10103A2377 |
| Instructions and Manuals: | 9AKK10103A3029 |
| RoHS Information: | 9AKK106713A4634 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 9AKK10103A3029 |
| Instructions and Manuals: | 9AKK10103A3029 |
| |
| ETIM 6: | EC000029 - Push button |
| ETIM 7: | EC000029 - Push-switch button |
| ETIM 8: | EC000029 - Push-switch button |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 85365080 |
