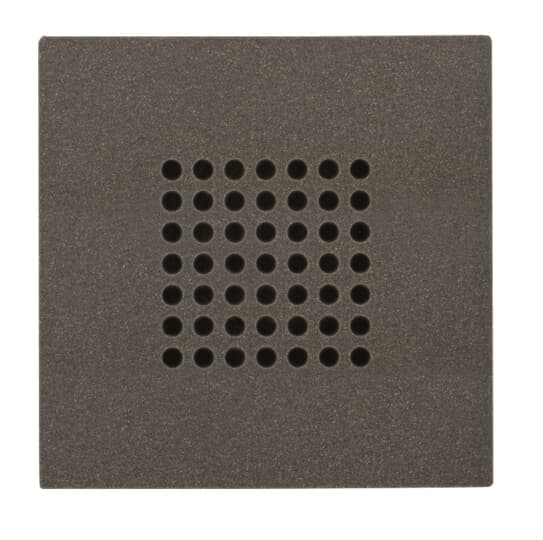

AMD24144-AN Modular Electronic Bell - 2M - AN
We find the right product
for you
Official reseller
Expert engineering support
Configuration
):
General Information | |
| Extended Product Type: | AMD24144-AN |
| Product ID: | 2CLA622400N1801 |
| EAN: | 8427238112824 |
| Catalog Description: | AMD24144-AN Modular Electronic Bell - 2M - AN |
| Long Description: | Rated voltage: 230 Vac / 50-60 Hz.4 melodies available.Acoustic power at 1 meter with cover plate: 72 dB.Combination with frames AMD5144-XX & 5244-XX |
| |
| Product Name: | Modular Electronic Bell - 2M - AN |
| Current Type: | AC |
| Function: | Electronic bell |
| Rated Voltage (Ur): | 230 V |
| Power Consumption (@P | |
| cons | 0.2 A |
| Sound dB (A): | 76 dB |
| Mounting Type: | Flush mounted (plaster) |
| Housing Material: | Plastic |
| Material: | Plastic |
| Color: | Anthracite |
| Housing Color: | Black |
| Number of Batteries: | 0 |
| |
| Ambient Air Temperature: | Operation -5 ... +35 °C |
| Storage -5 ... +50 °C | |
| Degree of Protection: | IP20 |
| |
| Width in Number of Modular Spacings: | 2 |
| Product Net Width: | 0.081 m |
| Product Net Height: | 0.047 m |
| Product Net Depth / Length: | 0.294 m |
| Product Net Weight: | 0.116 kg |
| |
| Package Level 1 Units: | box 5 piece |
| Package Level 1 Width: | 77 mm |
| Package Level 1 Height: | 50 mm |
| Package Level 1 Depth / Length: | 297 mm |
| Package Level 1 Gross Weight: | 0.3 kg |
| Package Level 1 EAN: | 8427238112824 |
| |
| Minimum Order Quantity: | 5 piece |
| Customs Tariff Number: | 85389099 |
| Country of Origin: | Spain (ES) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | No declaration needed |
| Instructions and Manuals: | 9AKK106930A7740 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 9AKK106930A7740 |
| Instructions and Manuals: | 9AKK106930A7740 |
| |
| ETIM 6: | EC000131 - Bell |
| ETIM 7: | EC000131 - Bell |
| ETIM 8: | EC000131 - Bell |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 85389099 |
