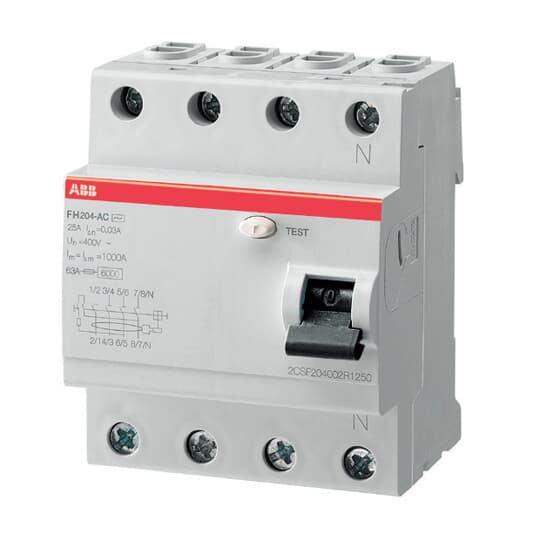

AR FH204 AC-25/0.03 Residual Current Circuit Breaker
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | AR FH204 AC-25/0.03 |
| Product ID: | 1TMF204006R1250 |
| EAN: | 7798079191257 |
| Catalog Description: | AR FH204 AC-25/0.03 Residual Current Circuit Breaker |
| Long Description: | AR FH204 AC-25/0,03 Residual Current Circuit Breaker |
| |
| Standards: | IEC/EN 61008 |
| Product Name: | Residual Current Circuit Breaker |
| Type of Residual Current: | AC type |
| Rated Voltage (Ur): | 230/400 V |
| Rated Operational Voltage: | 230/400 V |
| Rated Insulation Voltage (Ui): | 500 V |
| Rated Impulse Withstand Voltage (Uimp): | 4 kV |
| Rated Current (In): | 25 A |
| Rated Residual Current: | 30 mA |
| Rated Service Short-Circuit Breaking Capacity (Ics): | 1 kA |
| Maximum Surge Current: | 0.25 kA |
| Leakage Current Type: | AC |
| Rated Frequency (f): | 50 / 60 Hz |
| Number of Poles: | 4 |
| Operating Characteristic: | Instantaneous |
| Mounting Type: | DIN rail |
| Options Provided: | None |
| Rated Cross-Section: | 4 - Multi-Wired 10...25 mm² |
| 1 - Solid-Core 25...25 mm² | |
| |
| Ambient Temperature: | -25...55 °C |
| Ambient Air Temperature: | Operation -5 ... +40 °C |
| Storage -40 ... +70 °C | |
| Degree of Protection: | IP2X |
| Environmental Information: | Refer to RoHS |
| Technical UL/CSA | |
| Short-Circuit Current Rating (SCCR): | 0.03 A |
| |
| Width in Number of Modular Spacings: | 2 |
| Product Net Width: | 70 mm |
| Product Net Height: | 69 mm |
| Product Net Depth / Length: | 85 mm |
| Product Net Weight: | 0.38 kg |
| Built-In Depth (t2): | 69 mm |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 80 mm |
| Package Level 1 Height: | 82 mm |
| Package Level 1 Depth / Length: | 94 mm |
| Package Level 1 Gross Weight: | 0.415 kg |
| Package Level 1 EAN: | 7798079191257 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85363030 |
| Country of Origin: | Italy (IT) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 9AKK106713A5603 |
| Environmental Information: | Refer to RoHS |
| Instructions and Manuals: | No document needed |
| RoHS Information: | 2CSC423001K2702 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CSC400030D0202 |
| Instructions and Manuals: | No document needed |
| |
| ETIM 6: | EC000003 - Residual current circuit breaker (RCCB) |
| ETIM 7: | EC000003 - Residual current circuit breaker (RCCB) |
| ETIM 8: | EC000003 - Residual current circuit breaker (RCCB) |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 85363030 |
| Object Classification Code: | F |
