Article: 1516/LP-GSM
Article: 1516/LP-GSM
1516/LP-GSM Mounting Kit comXline 1516 GSM
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | 1516/LP-GSM |
| Product ID: | 2CDG290006R0011 |
| EAN: | 4016779881814 |
| Catalog Description: | 1516/LP-GSM Mounting Kit comXline 1516 GSM |

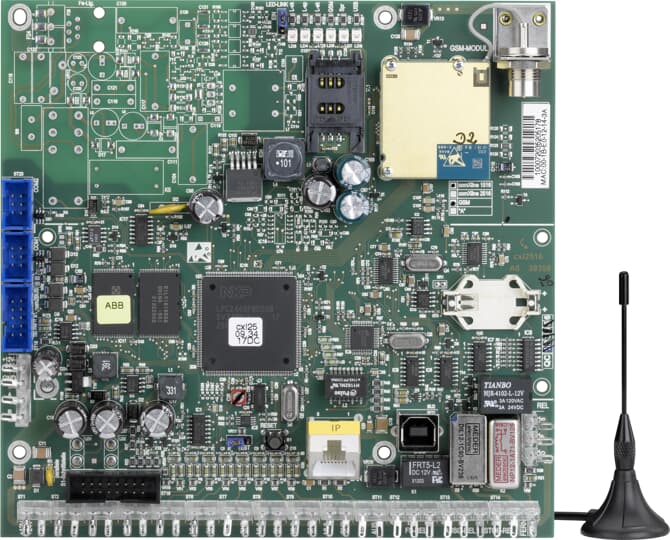

| Long Description: | IP-/GSM Alarm Transmission Device to transmit danger messages, faults and operating states to an alarm receiving center. Connection of 8 potential-free inputs and/or ATS bus of the GM/A 8.1. Mounted in S3 or S8 housing. VdS class A, EN Grade 3. |
| |
| Product Name: | Alarm System - GMA |
| Auxiliary Voltage AC/DC: | 12 V DC |
| Power Loss: | 1.52 W |
| Number of Outputs: | 4 |
| Mounting Type: | Built-in Installation |
| Surface Mounted | |
| Manual Operation: | No |
| Battery Chemical Composition: | Lithium |
| Battery Type: | Portable |
| Battery Weight: | 0.003 kg |
| Number of Batteries: | 1 |
| |
| RoHS Status: | Following EU Directive 2011/65/EU |
| |
| Product Net Width: | 165 mm |
| Product Net Height: | 160 mm |
| Product Net Depth / Length: | 24 mm |
| Product Net Weight: | 0.3 kg |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 220 mm |
| Package Level 1 Height: | 65 mm |
| Package Level 1 Depth / Length: | 260 mm |
| Package Level 1 Gross Weight: | 0.31 kg |
| Package Level 1 EAN: | 4016779881814 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85319000 |
| E-Number (Switzerland): | 961821003 |
| Country of Origin: | Germany (DE) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 2CDK540111D2701 |
| Instructions and Manuals: | 2CDG941181P0002 |
| RoHS Information: | 2CDK540111D2701 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CDC541180D0101 |
| Instructions and Manuals: | 2CDG941181P0002 |
| |
| ETIM 6: | EC001766 - Alarm transfer device |
| ETIM 7: | EC001766 - Alarm transfer device |
| ETIM 8: | EC001766 - Alarm transfer device |
| EPLAN Catalog Tree: | Electrical engineering / Sensor, switch, and pushbutton / General |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 8531 90 00 |
| eClass: | V7.0 : 27143231 |
| Object Classification Code: | A |
