Article: 151-SV12-18
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | 151-SV12-18 |
| Product ID: | 7TAA001980R0033 |
| EAN: | 0785991026047 |
| Catalog Description: | BX, SV12 BRKT,.75 INCOVER 2 DEVICE |

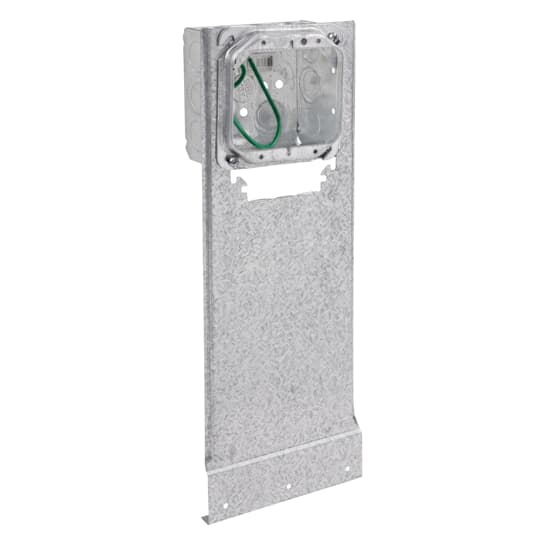

| Long Description: | Pre-Fabricated, Two Gang Outlet Box, 21 Cubic Inches, 4 Inch Square x 1-1/2 Inch Deep, 1/2 and 3/4 Inch Eccentric Knockouts, Galvanized Steel, 3/4 Inch Raised Box Cover, with 10-1/2 Inch Grounding #12 AWG Solid Ground Wire Pigtail and 12 Inch Vertical Mounting Bracket, For Use with Conduit |
| |
| EAN: | 0785991026047 |
| |
| Package Level 1 Units: | 10 piece |
| Package Level 1 Width: | 15.5 in |
| 394 mm | |
| Package Level 1 Height: | 8.3 in |
| 211 mm | |
| Package Level 1 Depth / Length: | 20.5 in |
| 521 mm | |
| Package Level 2 Units: | 240 piece |
| |
| Brand / Label: | EFab |
| Cable Entry Position: | Knockouts |
| Color: | Gray |
| Effective Date: | 20021218 |
| Material: | Steel |
| Mounting Type: | Bracket |
| Number of Batteries: | 0 |
| Product Name: | ASSY OF STEEL BOX:COVER,BKT,CU GRD |
| Product Type: | eFab |
| UPC: | 785991026047 |
| Volume: | 21 in³ |
| |
| Data Sheet, Technical Information: | 151-SV12-18 |
| Instructions and Manuals: | 151-SV12-18 |
| |
| ETIM 6: | EC002600 - Box/housing for surface mounting on the wall/ceiling |
| ETIM 7: | EC002600 - Box/housing for surface mounting on the wall/ceiling |
| UNSPSC: | 39121309 |
| WEEE Category: | Product Not in WEEE Scope |
| IDEA Granular Category Code (IGCC): | 4439 >> Specialty electrical boxes |
