Article: 7306
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Global Commercial Alias: | 7306 |
| Product ID: | 7B7306 |
| ABB Type Designation: | .5HP,1800RPM,1PH,60HZ,3420C,GRND |
| Catalog Description: | .5HP,1800RPM,1PH,60HZ,3420C,GRND |
| |
| ABB Type Designation: | .5HP,1800RPM,1PH,60HZ,3420C,GRND |
| Ambient Temperature: | 40 °C |
| Brake Present: | No |
| Brand / Label: | Baldor-Reliance |
| Catalog Number: | 7306 |
| Certification Agency: | UR |
| Country of Origin: | United States (US) |
| Customs Tariff Number: | 8460908020 |
| Dimension Diagram: | G7LY0306 |
| ETIM 7: | EC001851 - Electric motor |
| Efficiency Level: | Not Regulated / Exempt |
| Enclosure Type: | GRND |
| Frame Material: | Steel |
| Frequency (f): | 60 Hz |
| Global Commercial Alias: | 7306 |
| Gross Volume: | 3809.375 in³ |
| Gross Weight: | 31.78 kg |
| Horsepower Rating UL/CSA: | 0.500 Hp |
| IDEA Granular Category Code (IGCC): | 1329 >> Single phase motor AC |
| Invoice Description: | .5HP,1800RPM,1PH,60HZ,3420C,GRND |
| Made To Order: | No |
| Minimum Order Quantity: | 1 piece |
| Motor Base Type: | Rigid |
| Number of Phases: | 1 |
| Number of Poles: | 4 |
| Number of Speeds: | Single Speed |
| Order Multiple: | 1 piece |

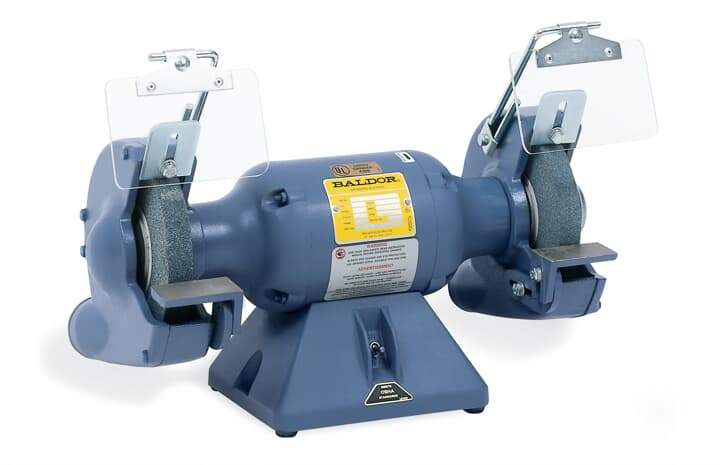

| Product Name: | Grinders/Buffers/Lathes/Belt Sander |
| Product Net Height: | 33.655 cm |
| Product Net Length: | 58.42 cm |
| Product Net Weight: | 31.78 kg |
| Product Net Width: | 31.75 cm |
| Product Type: | Undefined |
| Quote Only: | No |
| Rated Current (In): | 3.8 A |
| 1.9 A | |
| Rated Speed: | 1,800 r/min |
| Selling Unit of Measure: | piece |
| Service Factor: | 1.00 |
| Service Factor Percentage: | 1.00 % |
| Shaft Diameter: | 0.625 in |
| Starting of Motor: | Direct On Line |
| Stocked At (Warehouses): | China |
| Alabama, United States | |
| Alaska, United States | |
| UNSPSC: | 26101116 |
| Voltage Rating: | 115 V |
| 230 V |
