Article: 70M4
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | 70M4 |
| Product ID: | 7TBA010800R0050 |
| EAN: | 0622538059369 |
| Catalog Description: | 3/8 IN NMD90/AC90 CONNECTOR PKG/4 |
| Long Description: | Fitting, One Screw, Trade Size 3/8 Inch, Clamping Range 0.13 Inch - 0.70 Inch, Zinc Alloy, Suggested Application NMD90 14/2-10/2, 14/3-10/3 and AC90 14/2-10/2, 14/3-10/3, 14/4-10/4, Pack of 15 |
| |
| EAN: | 0622538059369 |
| |
| Package Level 1 Units: | 15 piece |
| Package Level 1 Width: | 6.38 in |
| 162 mm | |
| Package Level 1 Height: | 5.63 in |
| 143 mm | |
| Package Level 1 Depth / Length: | 11.75 in |
| 298 mm | |
| Package Level 2 Units: | 2520 piece |
| Package Level 2 Width: | 40 in |
| 1016 mm | |
| Package Level 2 Height: | 44.41 in |
| 1128 mm | |
| Package Level 2 Depth / Length: | 48 in |
| 1219 mm | |
| |
| Application: | NMD90 (loomex) 14/2, 12/2, 10/2; 14/3, 10/3 - AC90 (BX) 14/2, 12/2, 10/2; 14/3, 12/3, 10/3; 14/4 |
| Brand / Label: | Steel City / Iberville |
| Effective Date: | 19990518 |
| Material: | Zinc Alloy |
| Nominal Size: | 3/8 in |
| Number of Batteries: | 0 |

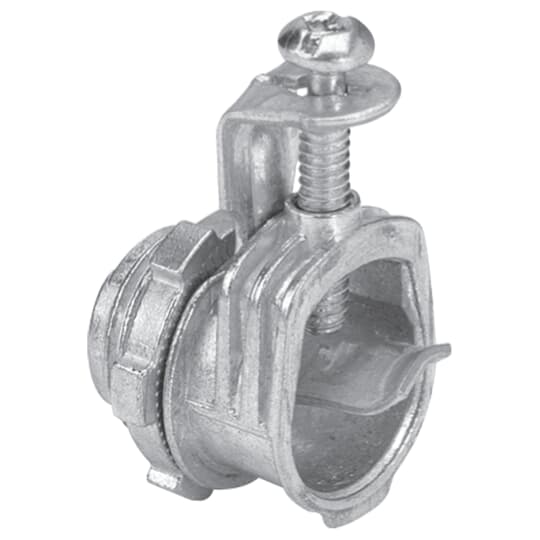

| Product Name: | CONNECTOR ZINC ALLOY FLEX CONDUIT |
| Product Type: | Fitting, One Screw |
| Standards: | CSA 3313 |
| UPC: | 622538059369 |
| |
| Data Sheet, Technical Information: | 70M4 |
| Instructions and Manuals: | 70M4 |
| |
| ETIM 6: | EC001180 - Screw connection for protective metallic hose |
| ETIM 7: | EC001180 - Screw connection for protective metallic hose |
| UNSPSC: | 39121719 |
| WEEE Category: | Product Not in WEEE Scope |
| IDEA Granular Category Code (IGCC): | 5067 >> Strain reliefs |
