Article: KS876
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | KS876 |
| Product ID: | 2CPX032630R9999 |
| EAN: | 4011617326304 |
| Catalog Description: | KS876 Residential incomer cabinet |

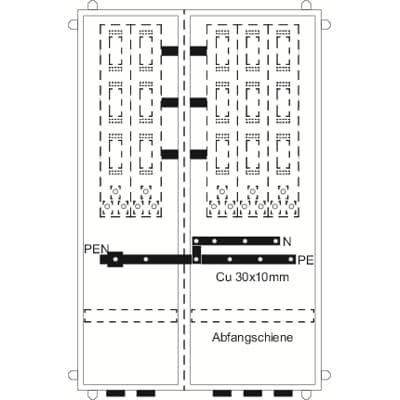

| Long Description: | Residential incomer cabinet, series TwinLine, fully assembled cabinet, for the internal use, with Door, class of protection I (earthed), degree of protection IP54, applicable standards: EN 61439-1, rated current 500 A, powder-coated, in RAL 7035, enclosure out of sheet steel, double door, dimensions in mm (H x W x D): 1250 x 800 x 350, Earthing system TN-C-S, -pole, Grid unit 8 GU, Overall height 4, panel width 3, Space units 288 |
| |
| Product Name: | Residential incomer cabinet |
| Rated Current (In): | 500 A |
| Number of Meter Cabinets: | 0 |
| Number of Panel Widths: | 2 |
| Number of Rows: | 0 |
| Number of TSG Panels: | 0 |
| Lower Connection Space: | with Bus Bar |
| Enclosure Type: | Residential incomer cabinet |
| Enclosure Type of Height: | 4 |
| Mounting Type: | Surface-mounted |
| Door Type: | Double |
| Surface Finishing: | powder-coated |
| Housing Material: | Steel |
| Material: | Steel plate |
| DIN Place Units: | 288 |
| Model Number: | eHZ |
| RAL Number: | RAL 7035 - Light Grey |
| Color: | Light grey |
| |
| Degree of Protection: | IP54 |
| Protection Class: | Grounded |
| SCIP: | 29b0f087-c231-4008-b064-9a506b680daa Germany (DE) |
| Simplified SCIP: | 29b0f087-c231-4008-b064-9a506b680daa Germany (DE) |
| |
| Product Net Width: | 800 mm |
| Product Net Height: | 1250 mm |
| Product Net Depth / Length: | 350 mm |
| Product Net Weight: | 63.376 kg |
| Built-In Depth (t2): | 350 mm |
| |
| Package Level 1 Units: | pack 1 piece |
| Package Level 1 Width: | 840.000 mm |
| Package Level 1 Height: | 1290.000 mm |
| Package Level 1 Depth / Length: | 390.000 mm |
| Package Level 1 Gross Weight: | 65.911 kg |
| Package Level 1 EAN: | 4011617326304 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85371098 |
| Country of Origin: | Germany (DE) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | No declaration needed |
| Instructions and Manuals: | 2CPC119663M5601 |
| 2CPC126603M5601 | |
| 2CPC016708M5601 | |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CPC000003B0101 |
| Instructions and Manuals: | 2CPC119663M5601 |
| 2CPC126603M5601 | |
| 2CPC016708M5601 | |
| |
| ETIM 6: | EC000262 - Meter cabinet equipped |
| ETIM 7: | EC000262 - Meter cabinet equipped |
| ETIM 8: | EC000262 - Meter cabinet equipped |
| EPLAN Catalog Tree: | Mechanics / Housings / General |
| WEEE Category: | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Business |
| CN8: | 85371098 |
| Object Classification Code: | U |
