General Information | |
| Extended Product Type: | ML25 |
| Product ID: | 2CPX041368R9999 |
| EAN: | 4011617413684 |

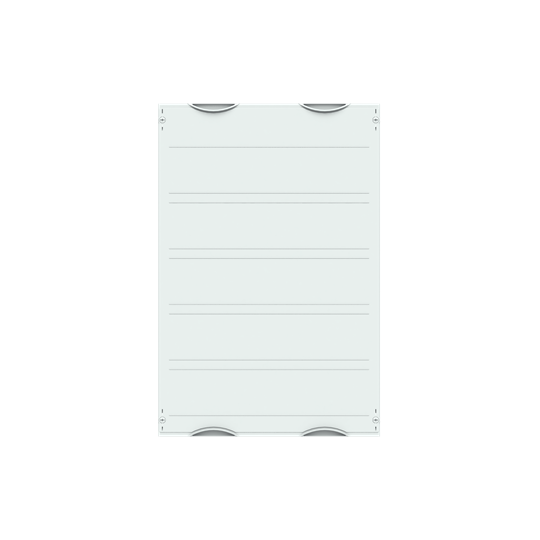

| Catalog Description: | ML25 Interior fitting module |
| Long Description: | Interior fitting module, CombiLine, mounted in cabinet, for Busbar system 185 mm NH-switch disconnector, Grid unit 5 GU = 750 mm, panel width 2 = 500 mm, 120 Space units, , usuable width of 400 mm, unequipped for the installation of 8 NH-switch disconnector NH1 till NH3, for busbar system 3-pole, Busbar alignment: horizontal, with busbar holders ZX523, Busbar center distance: 185 mm, for maximum 3 Cu busbars, (busbars must be ordered separately), rated current maximum 850 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usuable as of the cabinet depth of 625 mm |
| |
| Standards: | DIN EN 61439-3 |
| DIN EN 61439-2 | |
| Product Name: | Interior fitting module |
| Rated Operational Voltage: | Maximum 400 V |
| Operational Voltage: | 400 V |
| Rated Current (In): | 850 A |
| Number of Poles: | 3 |
| Number of Knife Blade Fuse Holders: | 0 |
| Number of Mountable Devices: | 8 |
| Enclosure Module Equipment: | Excludes Devices |
| Enclosure Mounting Frame: | WR |
| Device: | NH1 till NH3 |
| Enclosure Type: | Interior fitting module |
| Enclosure Type of Height: | 1 |
| Mounting Type: | Rail system |
| DIN Place Units: | 120 |
| Meter Boards: | 0 |
| Module Function: | Busbar system 185 mm NH-switch disconnector |
| Color: | Light grey |
| |
| Environmental Information: | 2CPC100001X0201 |
| |
| Product Net Width: | 500 mm |
| Product Net Height: | 750 mm |
| Product Net Depth / Length: | 625 mm |
| Product Net Weight: | 5.096 kg |
| Built-In Depth (t2): | 625 mm |
| |
| Package Level 1 Units: | pack 1 piece |
| Package Level 1 Width: | 500.000 mm |
| Package Level 1 Height: | 625.000 mm |
| Package Level 1 Depth / Length: | 750.000 mm |
| Package Level 1 Gross Weight: | 5.096 kg |
| Package Level 1 EAN: | 4011617413684 |
| Package Level 2 Units: | 12 piece |
| Package Level 2 Width: | 830 mm |
| Package Level 2 Height: | 1710 mm |
| Package Level 2 Depth / Length: | 1210 mm |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85381000 |
| Country of Origin: | Germany (DE) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 9AKK107992A4846 |
| Environmental Information: | 2CPC100001X0201 |
| Instructions and Manuals: | No document needed |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CPC000001C0101 |
| 2CPC000002C0101 | |
| 2CPC000003B0101 | |
| Instructions and Manuals: | No document needed |
| |
| ETIM 6: | EC002286 - Distributor assembly Low Voltage HRC fuse systems |
| ETIM 7: | EC002286 - Distributor assembly Low Voltage HRC fuse systems |
| ETIM 8: | EC002286 - Distributor assembly Low Voltage HRC fuse systems |
| EPLAN Catalog Tree: | Mechanics / Housing accessories, internal extension / General |
| WEEE Category: | Product Not in WEEE Scope |
| CN8: | 85381000 |
| Object Classification Code: | U |
