Article: MB317
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | MB317 |
| Product ID: | 2CPX041262R9999 |
| EAN: | 4011617412625 |

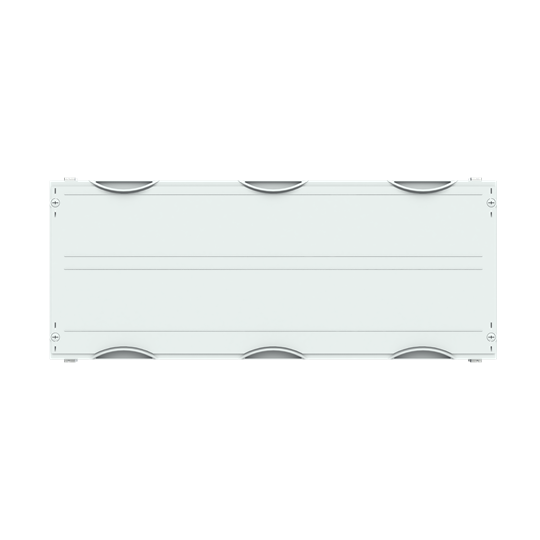

| Catalog Description: | MB317 Interior fitting module |
| Long Description: | Interior fitting module, CombiLine, mounted in cabinet, for touch guard, Grid unit 2 GU = 300 mm, panel width 3 = 750 mm, 72 Space units, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usuable as of the cabinet depth of 120 mm |
| |
| Standards: | DIN EN 61439-3 |
| DIN EN 61439-2 | |
| Product Name: | Interior fitting module |
| Rated Operational Voltage: | Maximum 400 V |
| Operational Voltage: | 400 V |
| Enclosure Mounting Frame: | WR or EDF |
| Enclosure Type: | Interior fitting module |
| Enclosure Type of Height: | 000 |
| DIN Place Units: | 72 |
| Meter Boards: | 0 |
| Module Function: | touch guard |
| Color: | Light grey |
| Cover Color: | Grey |
| |
| Environmental Information: | 2CPC100001X0201 |
| |
| Product Net Width: | 750 mm |
| Product Net Height: | 300 mm |
| Product Net Depth / Length: | 120 mm |
| Product Net Weight: | 1.16 kg |
| Built-In Depth (t2): | 120 mm |
| |
| Package Level 1 Units: | pack 1 piece |
| Package Level 1 Width: | 750.000 mm |
| Package Level 1 Height: | 120.000 mm |
| Package Level 1 Depth / Length: | 300.000 mm |
| Package Level 1 Gross Weight: | 1.162 kg |
| Package Level 1 EAN: | 4011617412625 |
| Package Level 2 Units: | 12 piece |
| Package Level 2 Width: | 830 mm |
| Package Level 2 Height: | 1710 mm |
| Package Level 2 Depth / Length: | 1210 mm |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85389099 |
| Country of Origin: | Germany (DE) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 9AKK107992A4846 |
| Environmental Information: | 2CPC100001X0201 |
| Instructions and Manuals: | No document needed |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CPC000001C0101 |
| 2CPC000002C0101 | |
| 2CPC000003B0101 | |
| Instructions and Manuals: | No document needed |
| |
| ETIM 6: | EC001892 - Distributor assembly with protection against contact |
| ETIM 7: | EC001892 - Distributor assembly with protection against contact |
| ETIM 8: | EC001892 - Distributor assembly with protection against contact |
| EPLAN Catalog Tree: | Mechanics / Housing accessories, internal extension / General |
| WEEE Category: | Product Not in WEEE Scope |
| CN8: | 85389099 |
| Object Classification Code: | U |
