General Information | |
| Extended Product Type: | LB6-CA |
| Product ID: | GJL1201903R0001 |
| EAN: | 4013614051081 |

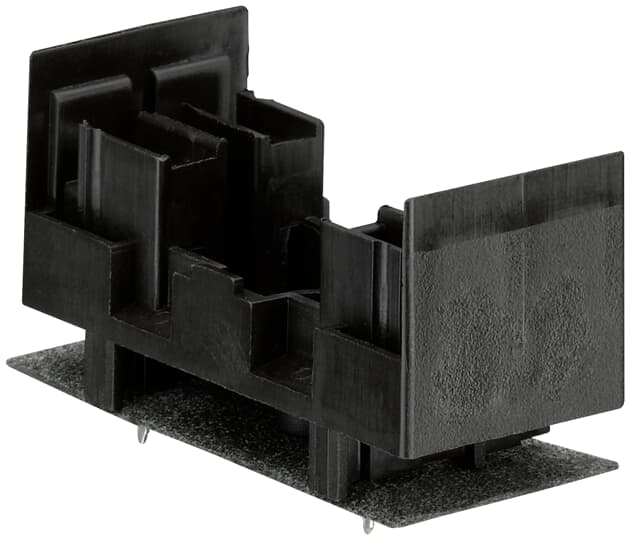

| Catalog Description: | LB6-CA Soldering Socket |
| Long Description: | LB6-CA Soldering Receptacle 2-pole |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85365080 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 1SBC100214C0201 |
| Dimension Diagram: | GJL1200421 |
| |
| Product Net Width: | 44 mm |
| Product Net Height: | 20.3 mm |
| Product Net Depth / Length: | 22 mm |
| Product Net Weight: | 0.01 kg |
| |
| Rated Insulation Voltage (Ui): | 690 V |
| Standards: | UL 60947-1 |
| UL 60947-4-1 | |
| Conventional Free-air Thermal Current (Ith): | Auxiliary Circuit 8 A |
| Main Circuit 8 A | |
| Product Name: | Soldering Socket |
| Suitable For: | CA6-11E-F |
| CA6-11K-F | |
| CA6-11M-F | |
| CA6-11N-F | |
| Suitable for Product Class: | Mini Contactors |
| Technical UL/CSA | |
| Maximum Operating Voltage UL/CSA: | Auxiliary Circuit 300 V AC/DC |
| Main Circuit 300 V AC | |
| Ampere Rating UL/CSA: | 8 A |
| |
| Ambient Air Temperature: | Operation -25 ... +50 °C |
| Storage -40 ... +80 °C | |
| RoHS Status: | Following EU Directive 2011/65/EU |
| |
| ABS Certificate: | NoCerNee |
| BV Certificate: | NoCerNee |
| cURus Certificate: | cUL_E191658 |
| Declaration of Conformity - CE: | 1SAD938517-0001 |
| Declaration of Conformity - UKCA: | 1SAD938500-1001 |
| DNV Certificate: | NoCerNee |
| GL Certificate: | NoCerNee |
| LR Certificate: | NoCerNee |
| RINA Certificate: | NoCerNee |
| RMRS Certificate: | NoCerNee |
| RoHS Information: | 1SAD938517-0001 |
| UL Certificate: | 1SAA938000-1604 |
| |
| Package Level 1 Width: | 115 mm |
| Package Level 1 Depth / Length: | 280 mm |
| Package Level 1 Height: | 54 mm |
| Package Level 1 Gross Weight: | 0.14 kg |
| Package Level 1 EAN: | 4013614412394 |
| Package Level 1 Units: | 10 piece |
| |
| Object Classification Code: | X |
| ETIM 4: | EC002498 - Accessories for low-voltage switch technology |
| ETIM 5: | EC002498 - Accessories for low-voltage switch technology |
| ETIM 6: | EC002498 - Accessories for low-voltage switch technology |
| ETIM 7: | EC002498 - Accessories for low-voltage switch technology |
| eClass: | V11.0 : 27371392 |
