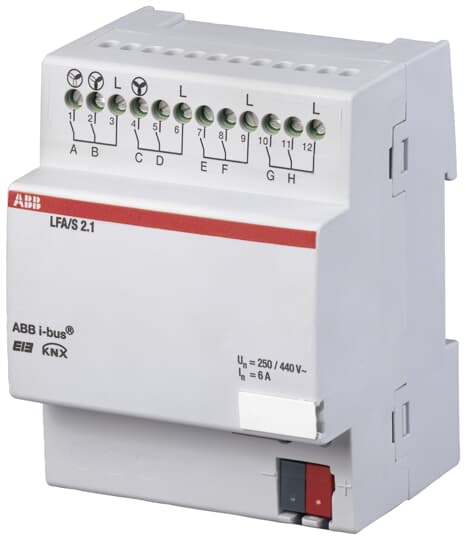

LFA/S2.1 Blower/Fan Coil Actuator, 2-fold, 6 A, MDRC
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | LFA/S2.1 |
| Product ID: | 2CDG110078R0011 |
| EAN: | 4016779655477 |
| Catalog Description: | LFA/S2.1 Blower/Fan Coil Actuator, 2-fold, 6 A, MDRC |
| Long Description: | The ABB i-bus® EIB / KNX Blower-/Fan Coil-Actuator LFA/S 2.1 allows the realisation of diverse application in the ventilation and climatisation segment, from simple 3-or 5-step motors or complex fan coil systems with two valve. |
| |
| Product Name: | Heating, Ventilation and Air Conditioning |
| Voltage Range: | 24 ... 230 V AC/DC |
| Maximum Switching Current: | 6 mA |
| Number of Outputs: | 8 |
| Compatible Bus Systems: | KNX (TP) |
| Mounting Type: | DIN-rail |
| Manual Operation: | No |
| |
| Degree of Protection: | IP20 |
| |
| Width in Number of Modular Spacings: | 4 |
| Product Net Width: | 74 mm |
| Product Net Height: | 90 mm |
| Product Net Depth / Length: | 64.5 mm |
| Product Net Weight: | 0.227 kg |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 92 mm |
| Package Level 1 Height: | 65 mm |
| Package Level 1 Depth / Length: | 77 mm |
| Package Level 1 Gross Weight: | 0.26 kg |
| Package Level 1 EAN: | 4016779655477 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85371091 |
| Replacement Product ID (NEW): | 2CDG110164R0011 |
| Country of Origin: | Germany (DE) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 2CDK508114D2701 |
| Instructions and Manuals: | 2CDG941037P0002 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CDC508052D0201 |
| 2CDC508053D0202 | |
| Instructions and Manuals: | 2CDG941037P0002 |
| |
| ETIM 6: | EC001097 - Switch actuator for bus system |
| ETIM 7: | EC001097 - Switch actuator for bus system |
| ETIM 8: | EC001097 - Switch actuator for bus system |
| EPLAN Catalog Tree: | Electrical engineering / Sensor, switch, and pushbutton / Switch , pushbutton |
| CN8: | 8537 10 91 |
| UNSPSC: | 31251516 |
| eClass: | V11.0 : 27143125 |
| IDEA Granular Category Code (IGCC): | 3268 >> Switch actuator |
| Object Classification Code: | A |
