Article: L240/MG2
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | L240/MG2 |
| Product ID: | 2CDG220003R0011 |
| EAN: | 4016779657372 |

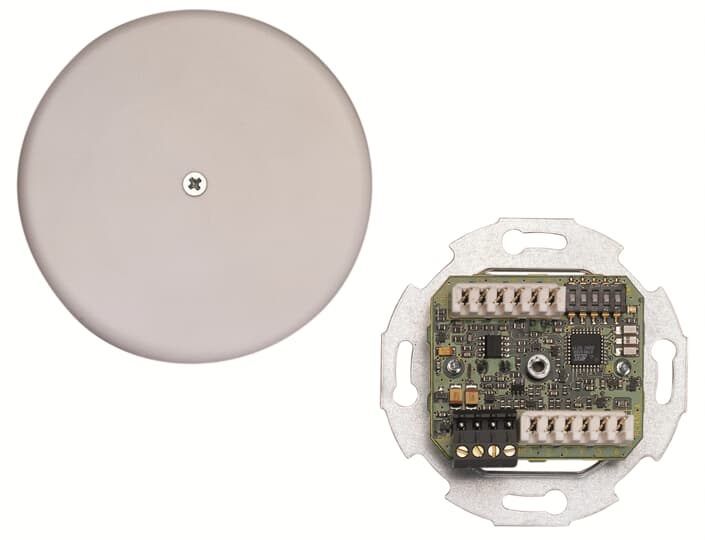

| Catalog Description: | L240/MG2 Zone Module, 2-fold, Flush Mounted |
| Long Description: | For expansion of the panel by 2 detector circuits. Used for connection to the exterior perimeter detectors such as magnetic reed contacts and passive glass break sensors. The module has 2 zones to which 2 detectors can be connected via LSA terminals. The module is an intelligent distributor by simple installation in a 60 mm installation box in the vicinity of the window. |
| |
| Product Name: | Alarm System - L240 |
| Power Loss: | 0.276 W |
| Number of Outputs: | 0 |
| Number of Digital Inputs: | 0 |
| Mounting Type: | Flush Mounted |
| Manual Operation: | No |
| Number of Batteries: | 0 |
| |
| Degree of Protection: | IP30 |
| |
| Product Net Width: | 20 mm |
| Product Net Height: | 80 mm |
| Product Net Depth / Length: | 80 mm |
| Product Net Weight: | 0.045 kg |
| |
| Package Level 1 Units: | carton 1 piece |
| Package Level 1 Width: | 25 mm |
| Package Level 1 Height: | 80 mm |
| Package Level 1 Depth / Length: | 80 mm |
| Package Level 1 Gross Weight: | 0.06 kg |
| Package Level 1 EAN: | 4016779657372 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85311030 |
| Country of Origin: | Germany (DE) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 2CDG220003R0011 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CDC541158D0201 |
| |
| ETIM 6: | EC002687 - Expansion module for surveillance systems |
| ETIM 7: | EC002687 - Expansion module for surveillance systems |
| ETIM 8: | EC002687 - Expansion module for surveillance systems |
| EPLAN Catalog Tree: | Electrical engineering / Logic items / General |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 8531 10 30 |
| eClass: | V7.0 : 27399211 |
| Object Classification Code: | A |
