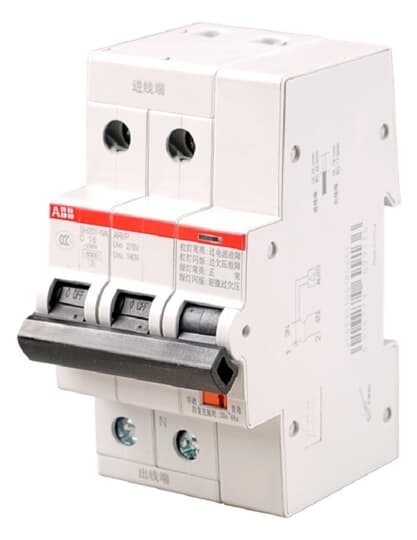

SH201-D16NA ARVP Miniature Circuit Breaker - 2P - D - 16 A
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | SH201-D16NA ARVP |
| Product ID: | 2TAZ133110R0161 |
| EAN: | 6957625371388 |
| Catalog Description: | SH201-D16NA ARVP Miniature Circuit Breaker - 2P - D - 16 A |
| Long Description: | Miniature Circuit Breaker SH201-D16NA ARVP |
| |
| Standards: | IEC/EN 60898-1 |
| GB 10963 | |
| Product Name: | Miniature Circuit Breaker |
| Tripping Characteristic: | D |
| Rated Voltage (Ur): | 230 V |
| Rated Operational Voltage: | 230 V AC |
| Rated Insulation Voltage (Ui): | 500 V |
| Rated Impulse Withstand Voltage (Uimp): | 4 kV |
| Input Voltage Type: | AC |
| Rated Current (In): | 16 A |
| Rated Short-Circuit Capacity (Icn): | (230 V) 6 kA |
| Rated Conditional Short-Circuit Current (Inc): | (230 V) 6 kA |
| Frequency (f): | 50...60 Hz |
| Rated Frequency (f): | 50-60 Hz |
| Energy Limiting Class: | 3 |
| Number of Poles: | 2 |
| Number of Protected Poles: | 1 |
| Overvoltage Category: | IV |
| Position of Neutral Terminals: | Right |
| Release Type: | D |
| Options Provided: | Auto-reclosing voltage protection |
| Accessories Available: | No |
| Connecting Capacity: | Flexible 0 ... 25 mm² |
| Rigid 0 ... 35 mm² | |
| |
| Ambient Temperature: | -25...55 °C |
| Ambient Air Temperature: | Operation -25...55 °C |
| Degree of Protection: | IP20 |
| Pollution Degree: | 2 |
| |
| Width in Number of Modular Spacings: | 2 |
| Product Net Width: | 0.018 m |
| Product Net Height: | 0.088 m |
| Product Net Depth / Length: | 0.044 m |
| Product Net Weight: | 0.3 kg |
| Built-In Depth (t2): | 69 mm |
| |
| Package Level 1 EAN: | 6957625371388 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85362010 |
| Country of Origin: | China (CN) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | No declaration needed |
| Instructions and Manuals: | No document needed |
| Popular Downloads | |
| Data Sheet, Technical Information: | 1SXF400005C2013 |
| Instructions and Manuals: | No document needed |
| |
| ETIM 6: | EC000042 - Miniature circuit breaker (MCB) |
| ETIM 7: | EC000042 - Miniature circuit breaker (MCB) |
| ETIM 8: | EC000042 - Miniature circuit breaker (MCB) |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 85362010 |
