Article: SOR XT1..XT4 24-30 Vac/dc
Article: SOR XT1..XT4 24-30 Vac/dc

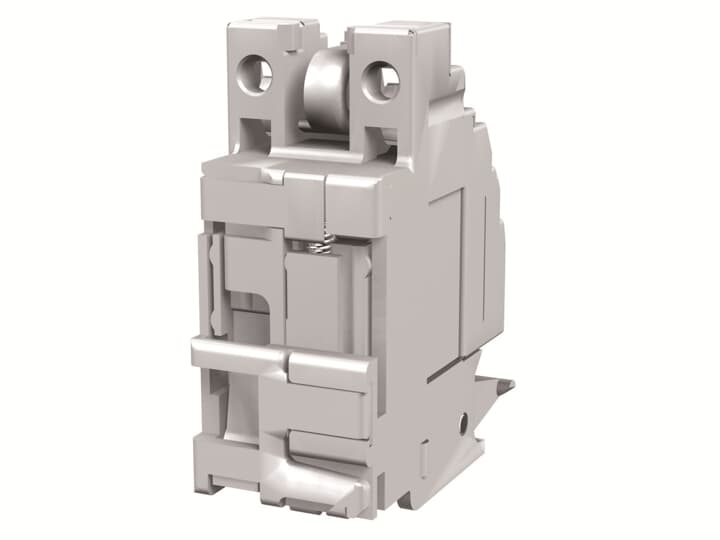

SOR XT1..XT4 24-30 Vac/dc
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | SOR XT1..XT4 24-30 Vac/dc |
| Product ID: | 1SDA066314R1 |
| EAN: | 8015644692148 |
| Catalog Description: | SOR XT1..XT4 24-30 Vac/dc |
| Long Description: | SHUNT OPENING RELEASE 24-30V AC-DC XT1..XT4 |
| |
| E-Number (Finland): | 3638708 |
| EAN: | 8015644692148 |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85389099 |
| |
| Product Net Width: | 110 mm |
| Product Net Height: | 60 mm |
| Product Net Depth / Length: | 140 mm |
| Product Net Weight: | 0.102 kg |
| |
| Package Level 1 Units: | 1 piece |
| Package Level 1 Width: | 110 mm |
| Package Level 1 Height: | 60 mm |
| Package Level 1 Depth / Length: | 140 mm |
| Package Level 1 Gross Weight: | 0.107 kg |
| Package Level 1 EAN: | 8015644692148 |
| |
| RoHS Status: | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| |
| Configuration Type: | Loose or configurable |
| Current Type: | AC/DC |
| Order Multiple: | 1 piece |
| Product Main Type: | Accessories for Tmax XT |
| Product Name: | Accessory |
| Product Type: | ACC |
| Rated Voltage (Ur): | 24 ... 30 V AC |
| 24 ... 30 V DC | |
| Standards: | IEC 60947-2 |
| Suitable For: | XT1, XT2, XT3, XT4 |
| Suitable for Product Class: | SACE Tmax XT |
| |
| Data Sheet, Technical Information: | 1SDC210100D0205 |
| 1SDC210099D0205 | |
| Declaration of Conformity - CE: | 9AKK106713A5532 |
| Instructions and Manuals: | 1SDH000719R0501 |
| REACH Declaration: | 9AKK108466A1425 |
| RoHS Information: | 9AKK108466A1424 |
| |
| ETIM 6: | EC002483 - Switch spool for power circuit breaker |
| ETIM 7: | EC002483 - Switch spool for power circuit breaker |
| Object Classification Code: | Q |
| UNSPSC: | 39120000 |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
