General Information | |
| Extended Product Type: | 1199 |
| Product ID: | 2CLA019900A1001 |
| EAN: | 8427238000466 |

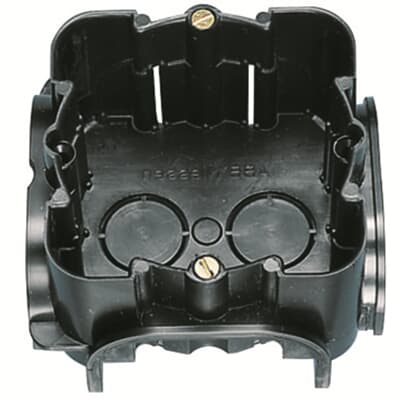

| Catalog Description: | 1199 Flush box VDE square |
| Long Description: | Units per box: 250. Permits the entrance of two tubes for each side. Connectable. Horizontal and vertical fixation possible. Distance between screws: 60 mm |
| |
| Product Name: | Flush box VDE square |
| Number of Conduit Inlets: | 2 |
| Number of Gangs: | 1 |
| Number of Inlet Inserts Included: | 0 |
| Design: | Device connection box (round/square) |
| Mounting Type: | Flush mounted (plaster) |
| Switching Equipment Mounting Type: | Screw |
| Shape: | Square |
| Surface Finishing: | Untreated |
| Material: | Plastic |
| Model Number: | Single |
| Color: | Black |
| |
| Ambient Air Temperature: | Operation -5 ... +35 °C |
| Storage -5 ... +50 °C | |
| Degree of Protection: | IP20 |
| |
| Product Net Width: | 0.088 m |
| Product Net Height: | 0.383 m |
| Product Net Depth / Length: | 0.392 m |
| Product Net Weight: | 0.026 kg |
| |
| Package Level 1 Units: | box 250 piece |
| Package Level 1 Width: | 0.088 m |
| Package Level 1 Height: | 0.383 m |
| Package Level 1 Depth / Length: | 0.392 m |
| Package Level 1 Gross Weight: | 6.5 kg |
| Package Level 1 EAN: | 8427238000466 |
| |
| Minimum Order Quantity: | 250 piece |
| Customs Tariff Number: | 85369001 |
| Country of Origin: | Spain (ES) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | No declaration needed |
| Instructions and Manuals: | No document needed |
| Popular Downloads | |
| Data Sheet, Technical Information: | No document needed |
| Instructions and Manuals: | No document needed |
| |
| ETIM 6: | EC002601 - Box/housing for built-in mounting in the wall/ceiling |
| ETIM 7: | EC002601 - Box/housing for built-in mounting in the wall/ceiling |
| ETIM 8: | EC002601 - Box/housing for built-in mounting in the wall/ceiling |
| WEEE Category: | Product Not in WEEE Scope |
| Safety Information | |
| Circuit Integrity: | E 60 |
