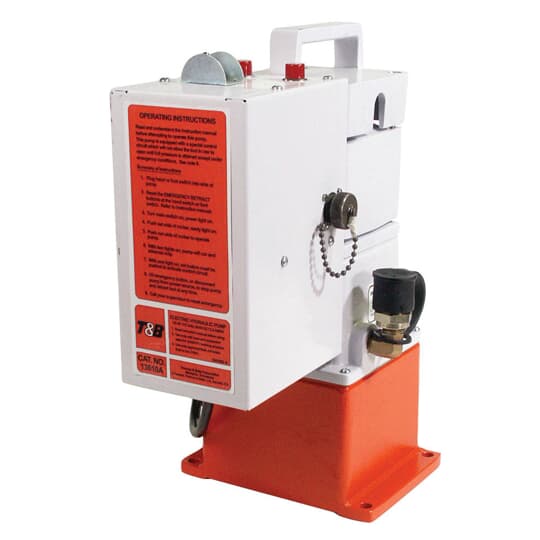

Article: 13610A
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | 13610A |
| Product ID: | 7TAA131670R0001 |
| EAN: | 5415022357288 |
| Catalog Description: | ELECTRIC HYD PUMP |
| Long Description: | Electric Hydraulic Pump with Shure-Stake Control, Hand or Foot Switch and Non-metallic Hose(Sold Separately)Required for Operation |
| |
| EAN: | 5415022357288 |
| |
| Product Net Weight: | 58.75 lb |
| 26.644 kg | |
| |
| Package Level 2 Units: | 1 piece |
| Package Level 2 Width: | 13 in |
| 330 mm | |
| Package Level 2 Height: | 11.3 in |
| 287 mm | |
| Package Level 2 Depth / Length: | 16 in |
| 406 mm | |
| Technical UL/CSA | |
| Horsepower Rating UL/CSA: | 1/2 Hp |
| |
| Application: | Crimping terminals/splices/disconnects. |
| Brand / Label: | Application Tooling |
| Dimensions: | 8-1/2 Inch Length x 10-1/2 Inch Width x 16 Inch High |
| Mounting Type: | 7/16 |
| Number of Batteries: | 0 |
| Process Pressure Rating: | 10000 PSIG |
| Product Name: | APPLICATION TOOLING |
| Product Type: | Hydraulic Pump |
| Special Functions: | 120V., 60Hz, 10000 PSI Operating Pressure, Shure-Stake Mechanism |
| UPC: | 786210889931 |
| |
| Data Sheet, Technical Information: | 13610A |
| Instructions and Manuals: | 13610A |
| |
| ETIM 6: | EC001185 - Hydraulic drive unit |
| ETIM 7: | EC001185 - Hydraulic drive unit |
| UNSPSC: | 40151533 |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| IDEA Granular Category Code (IGCC): | 6009 >> Hydraulic pumps |
