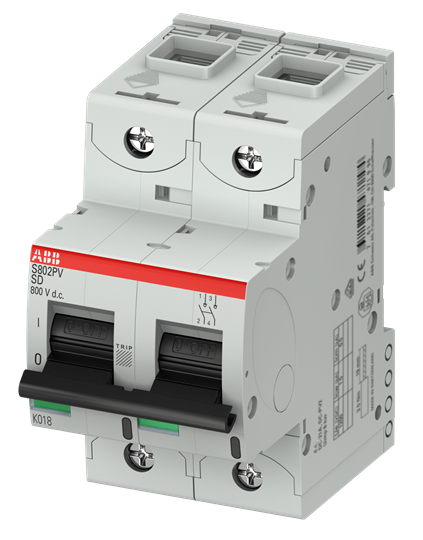

Article: S802PV-SD32
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | S802PV-SD32 |
| Product ID: | 2CCF019635R0001 |
| EAN: | 7612271471958 |
| Catalog Description: | S802PV-SD32 High Performance MCB |
| Long Description: | S802PV-SD32 2 Pole DC main switch 32A 1.5kA 800VDC DC main switch |
| |
| Standards: | IEC/EN 60947-3 |
| Product Name: | High Performance MCB |
| Rated Operational Voltage: | 800 V DC |
| Rated Current (In): | 32 A |
| Rated Operational Current (Ie): | 32 A |
| Rated Short-time Withstand Current Low Voltage (Icw): | 1.5 kA |
| Rated Uninterrupted Current (Iu): | 32 A |
| Power Loss: | 3.6 W |
| at Rated Operating Conditions per Pole 1.8 W | |
| Number of Poles: | 2 |
| Number of Switches: | 8500 |
| Control Element Color: | Black |
| |
| Degree of Protection: | Front IP20 |
| RoHS Status: | Following EU Directive 2011/65/EU |
| Environmental Information: | 2CCY413207D0203 |
| |
| Product Net Width: | 54 mm |
| Product Net Height: | 95 mm |
| Product Net Depth / Length: | 82.5 mm |
| Product Net Weight: | 490 g |
| Product Net Length: | 82.5 mm |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 105 mm |
| Package Level 1 Height: | 99 mm |
| Package Level 1 Depth / Length: | 60 mm |
| Package Level 1 Gross Weight: | 520 g |
| Package Level 1 EAN: | 7612271471958 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85362010 |
| E-Number (Sweden): | 2100092 |
| Country of Origin: | Switzerland (CH) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 2CCC005117D0201 |
| Environmental Information: | 2CCY413207D0203 |
| Instructions and Manuals: | 2CCC413016M0008 |
| RoHS Information: | 2CCC005117D0201, 9AKK107680A3903 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CCC413003C0208 |
| Instructions and Manuals: | 2CCC413016M0008 |
| |
| ETIM 6: | EC000216 - Switch disconnector |
| ETIM 7: | EC000216 - Switch disconnector |
| ETIM 8: | EC000216 - Switch disconnector |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Business |
| CN8: | 85362020 |
| Object Classification Code: | F |
